USER GUIDE
64

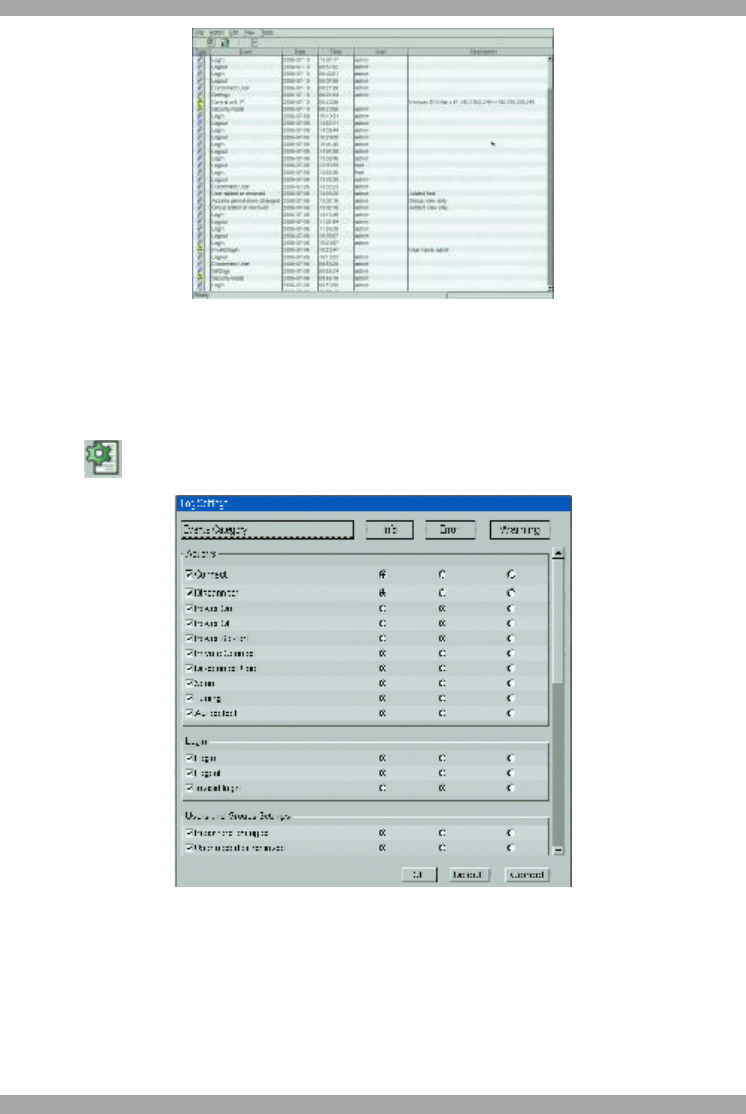

Figure 67 Log window
21.1 Configuring Log Traps
By default event logging is disabled. An Administrator can configure which log
traps to send to the SNMP Manager as follows:
1. Click . The Log Settings window appears see Figure 68.
Figure 68 Log Settings
2. Scroll down the list. Check those you wish to be sent. To check or uncheck all
events click the events category button at the top of the column.
