DX SY
STEM
63

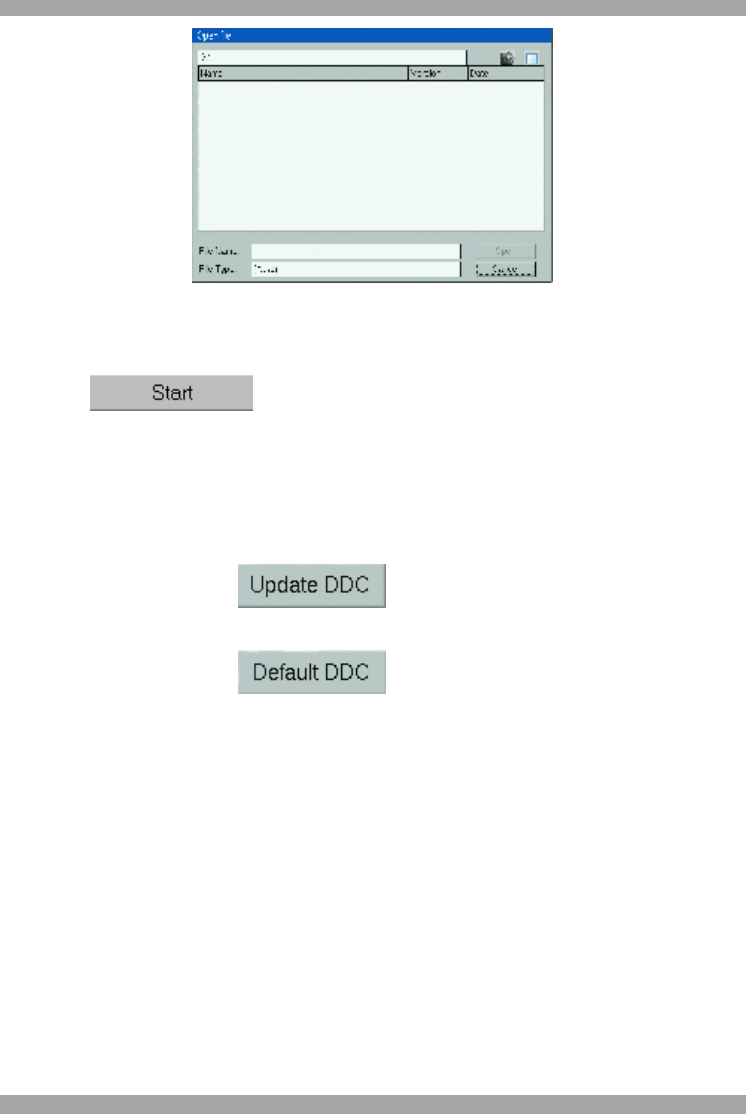

Figure 66 Open File box
6. Select the firmware file and click Open. The file appears in the information
section of the Update window.
7. Select . The firmware updates.
8. Reboot the DX User unit.
20.1 DDC buttons
All XRICCs come with the default DDC information of: 1024x768@75Hz. Where
the monitor connected to the DX User has a different resolution, select all
XRICCs/RICCs and press .
If you need to return the XRICCs to the default DDC information, select all the
XRICCs/RICCs and press .
21. Events log
View a log of all the activities that have occurred during the latest session. See the
event, date, time, username of the event initiator and where applicable, a brief
description of the event.
To view the log:
Select View/Activity Log. The Log window appears see Figure 67.
