DX SY

STEM

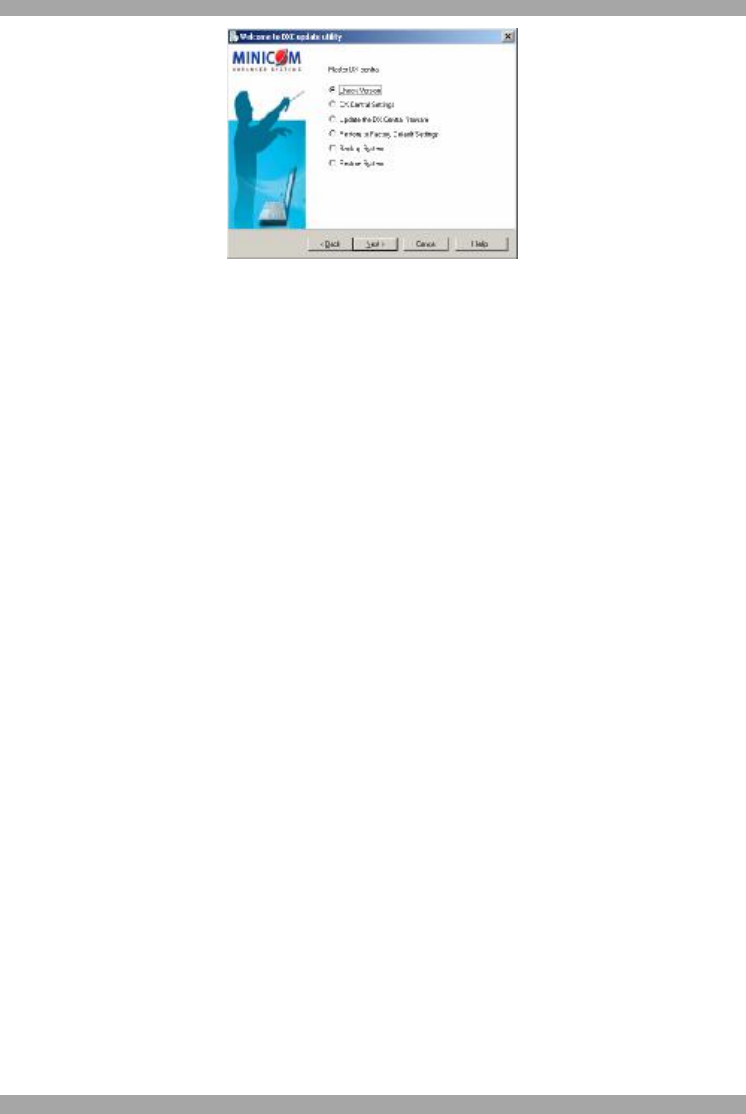

Figure 64 DXC update utility options

You can choose any of the following:

· Check version

· DX Central Settings (Check and/or change the settings)

· Update the DX Central firmware

· Restore factory defaults – and erase the current database

· Backup System (database)

· Restore System (by loading a saved database)

To do any of the above, check the desired option and click Next.

4. Under DX Central Settings, you can change the DX Central network settings or

IP address.

To update the firmware or load a saved database, locate the file and click Open.

To backup the database, save the current database to the Hard drive.

To restore factory defaults, press OK.

20. Updating the DX User and XRICCS/RICCs

From the DX AIM you can update the firmware for the:

· DX User unit

· XRICCs – PS/2, SUN and USB

· RICC PS/2

To obtain the latest firmware for your system go to www.minicom.com and look in

the Support section.
