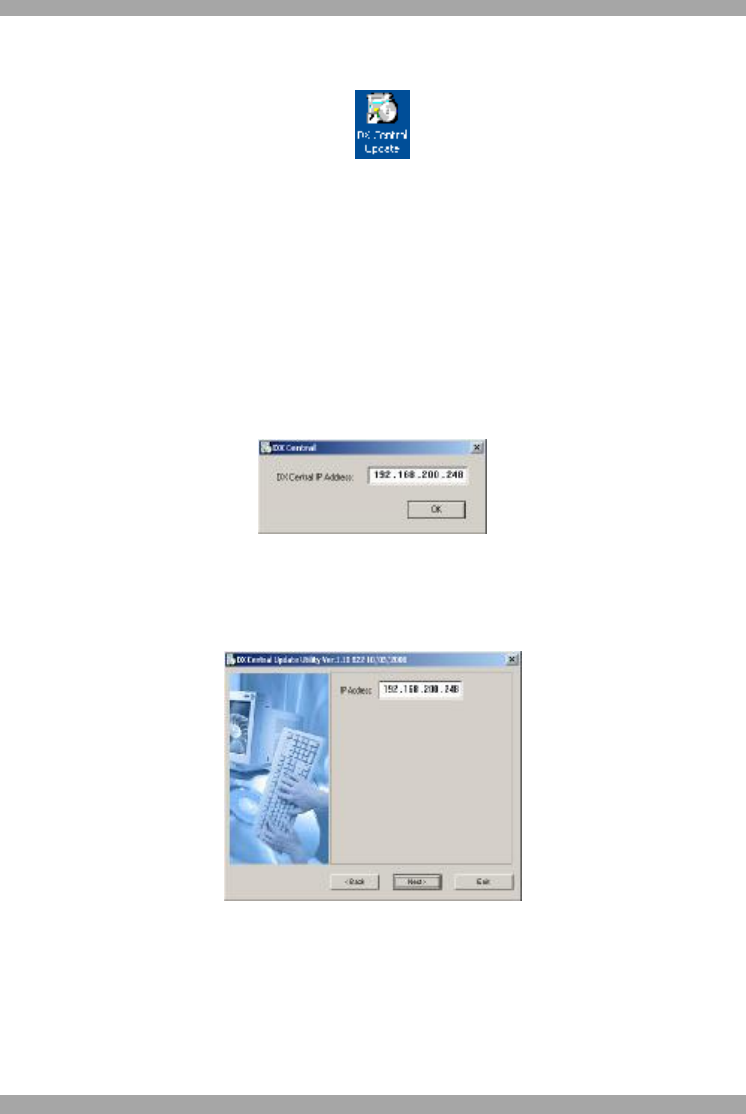

19.2 Running the DX Central Update

Install the program on any Windows-based computer connected to the DX network.

A shortcut icon appears on the Desktop . There are 2 Update options:

· DX Central Update

· Upgrading from V1.9 to V2

Where you have V1.9 installed you must first upgrade from V1.9 to V2. Once V2 is

installed you use the DX Central Update program. The Desktop icon only opens the

DX Central Update.

19.2.1 Upgrading from V1.9 to V2.0

1. Select Start/Programs/DX Central Update/ DX Upgrader 1.9x to 2.0. The DX

Central box appears. See Figure 59.

Figure 59 DX Central IP address

2. The default IP address of the DX Central appears. If the IP address is different,

type in the correct IP address and click OK. The DX Central Update Utility box

appears see Figure 60.

Figure 60 DX Central Update Utility box

3. Click Next. The Update Options screen appears. See Figure 61.
