USER GUIDE
42

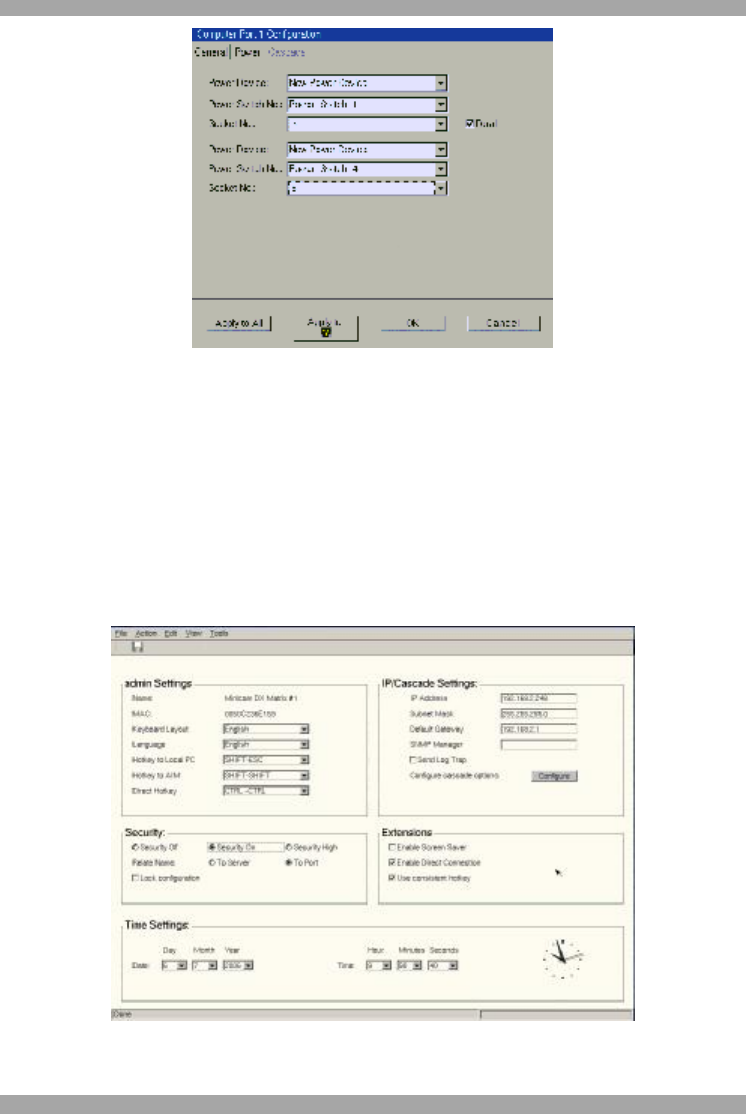

Figure 47 Dual Power devices
3. Save changes.
11.6 Other settings to configure
From the Tools menu click Settings, the Settings window appears. See Figure 48.
Important!
Some of the elements in this window must be configured BEFORE using the DX
system. Failure to do so will make the system inoperative. Each section of the
window is explained below.
Figure 48 Settings window
