USER GUIDE

11.5.1 Adding a new Power profile

To add new Power profile:

Click . The Add New Power Profile box appears, see Figure 45. The

information you need to type should be in the Power device instructions.

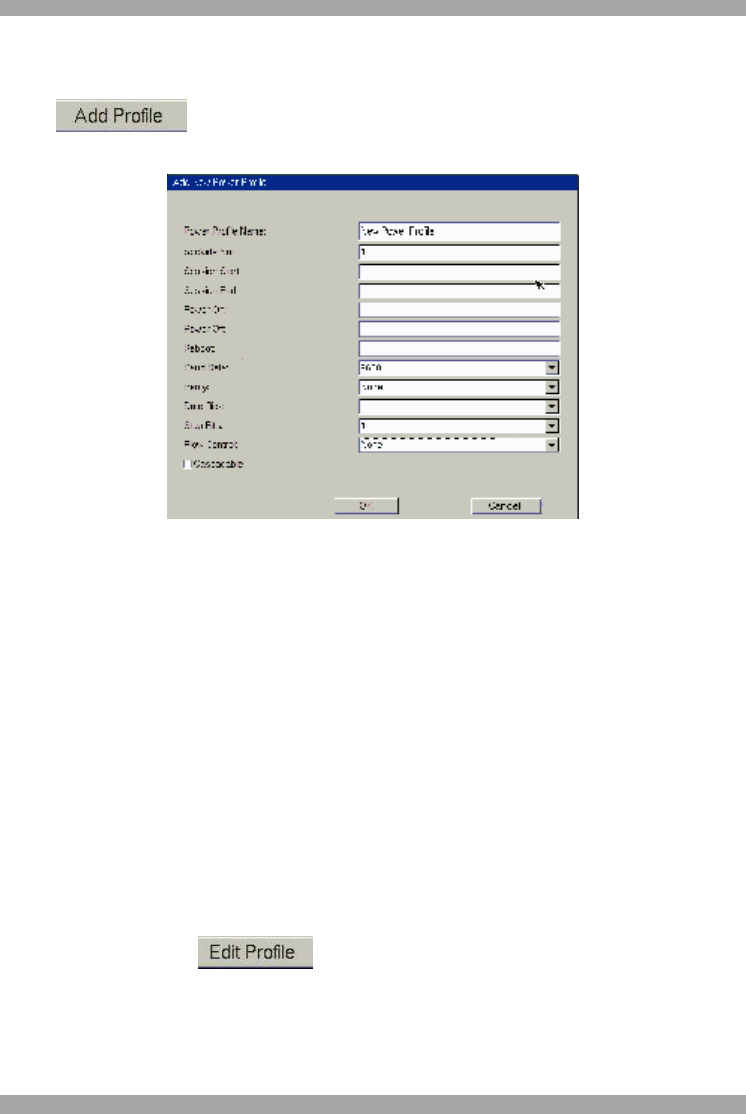

Figure 45 Add New Power Profile box

The Add New Power profile box elements

Power Profile Name - Give the profile a name.

Sockets No – Type the number of power sockets in the device.

Session Start/End. Power On/Off. Reboot – For this information see the power

device instructions.

Baud rate/Parity/Data Bits/Stop Bits/Flow Control - For this information see the

power device instructions.

Cascadable – When there are more of the same Power devices in the system, tick

this box. Then choose the number of cascaded Power devices from the drop-down

list.

Click Save to return to the Power device settings window. The added profile

appears in the list of profiles.

To edit a profile click . The Edit profile window appears –it has the

same elements as the Add New Power profile. Make the desired changes and click

Save.
