Name – From the drop-down menu select the lower level DX Central.
(Right) Port No: - From the drop-down menu select the lower level User port the
upper level Server port is connected to.
Do the above for each cascaded Server port.
Click Save.
Method B - lower level DX Central
1. From the list of DX switches, click the lower level DX Central. A figure of its
ports appears.
Note! An alternative method to steps 2-6 is set out in the bordered wording below.
2. Click a User port cascaded to the higher level DX Central. The Port
Configuration box appears.
3. Tick the Cascade box and click the Cascade tab. Figure 33 appears.

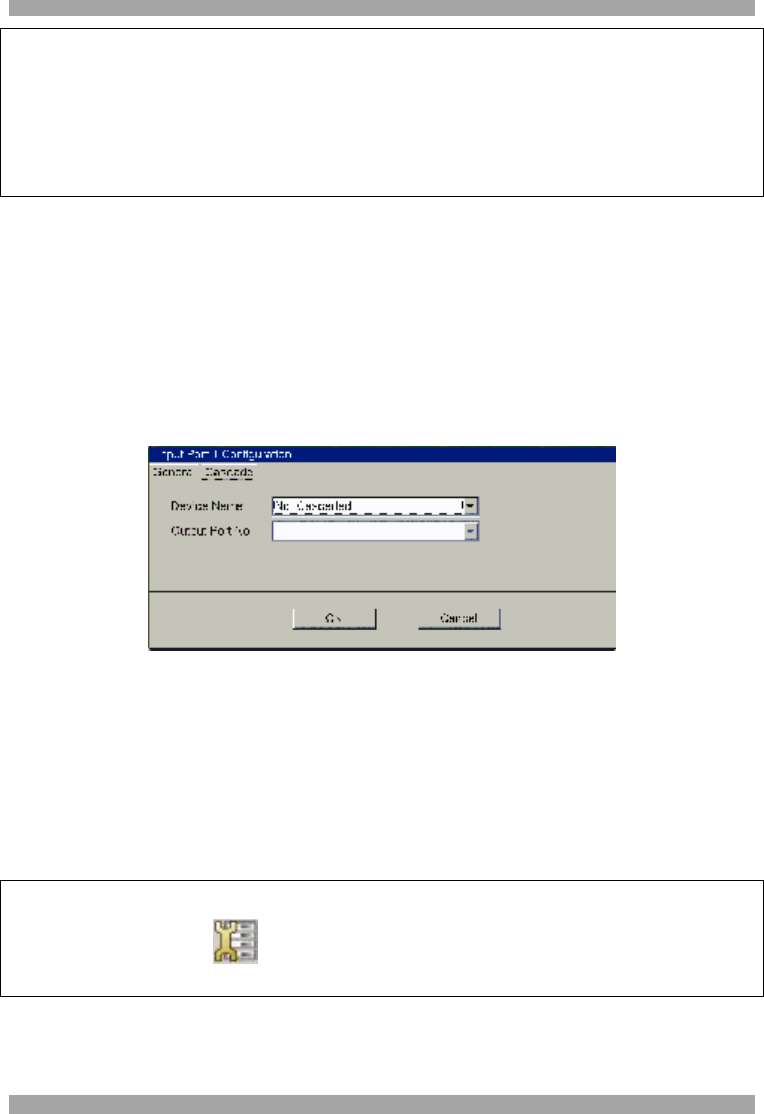

Figure 33 Cascade tab
4. Device Name – From the drop-down menu select the higher level DX Central.
5. Output port No: – From the drop-down menu select the higher level Server
port the lower level User port is connected to. For example in Figure 30 User
port 1 is connected to Server port 1.
6. Click OK.
Do the above for each cascaded User port.
After step 1 above, you can achieve the same result by doing the following:
From the toolbar click . The DX Central Properties box appears. Click the
Cascade Inputs tab. Figure 34 appears.
