DX SY

STEM

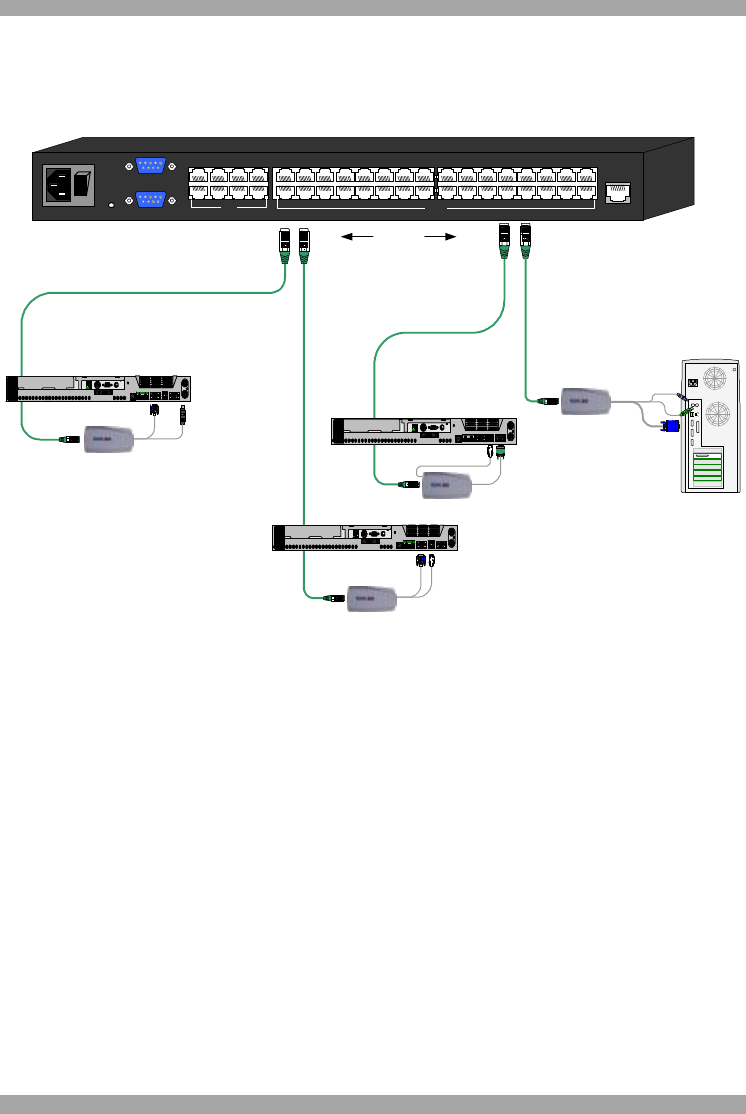

Figure 10 illustrates the different types of XRICCs connected to the DX Central.

How to connect the different XRICCs follows in detail below.

Keybd

Mouse

100T

VideoSerial A

Parallel

PCI 33Mx32b

Se rial B

NetServer tc2100

SCSI

DX Central

X-RICC PS/2

X-RICC USB

X-RICC SUN

CAT5 cables

Up to 100M / 330ft

To Server

ports

X-RICC RS232

POWER

100-250 VAC 50/60 Hz

www.minicom.com

ETHERNET

SERIAL

SERVICE

1234

18192017

SERVER

5678

22232421

1234

6785

9101112

26272825

13141516

30313229

USER

Figure 10 DX system connections

4.4 Connecting a RICC or XRICC PS/2

Figure 11 illustrates the connections.

To connect the RICC or XRICC PS/2:

1. Connect the Screen connector to the computer’s Video card.

2. Connect the Keyboard connector to the computer’s Keyboard port.

3. Connect the Mouse connector to the computer’s Mouse port.
