Installation Manual Ilumen PIDbox Mini v1.5
6.3 POWER SUPPLY
It is important that you only use the included DC power supply. First connect its DC side to the
Ilumen PIDbox mini power input. Next connect the AC side of the DC power supply to the
unplugged power cord. You may connect the DC side to the Ilumen PIDbox mini during
installation. Don’t connect the AC side until commissioning.
Make sure that locking screw of the DC-power plug for the outdoor version is
tightened for insuring a waterproof product
Make sure you always mount the power supply itself in a dry environment eg. in
the nearest inverter

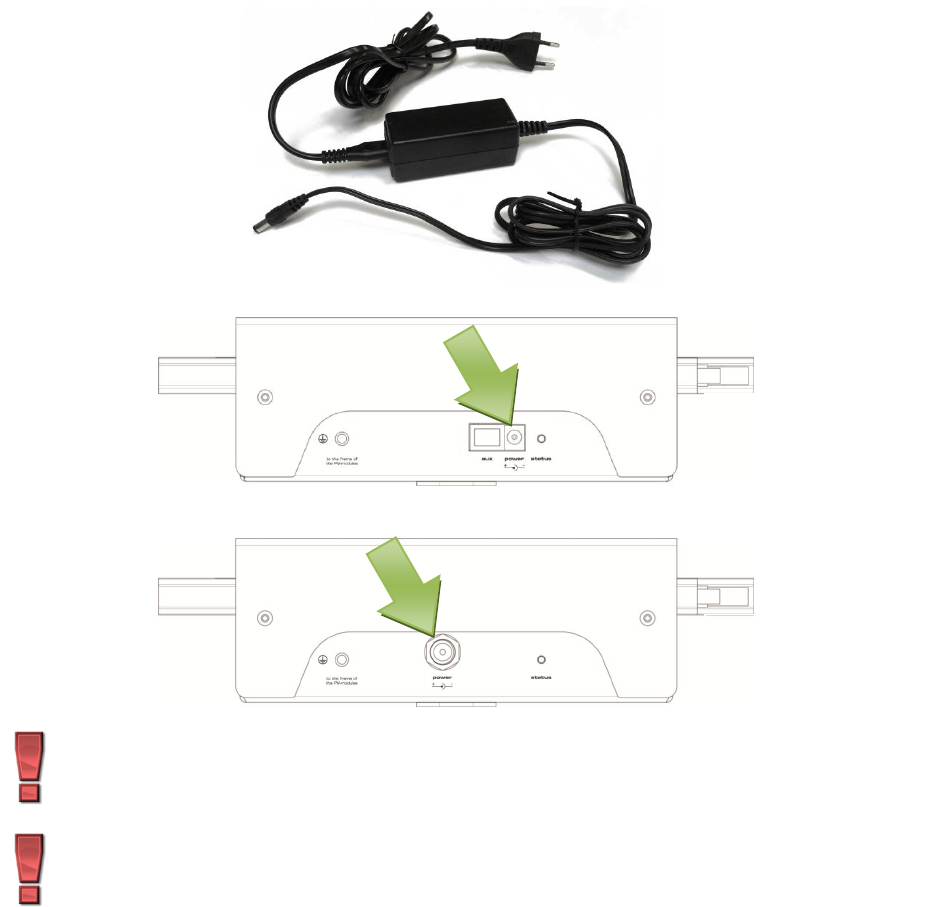

INDOOR
version
OUTDOOR
version
