Installation Manual Ilumen PIDbox Mini v1.5

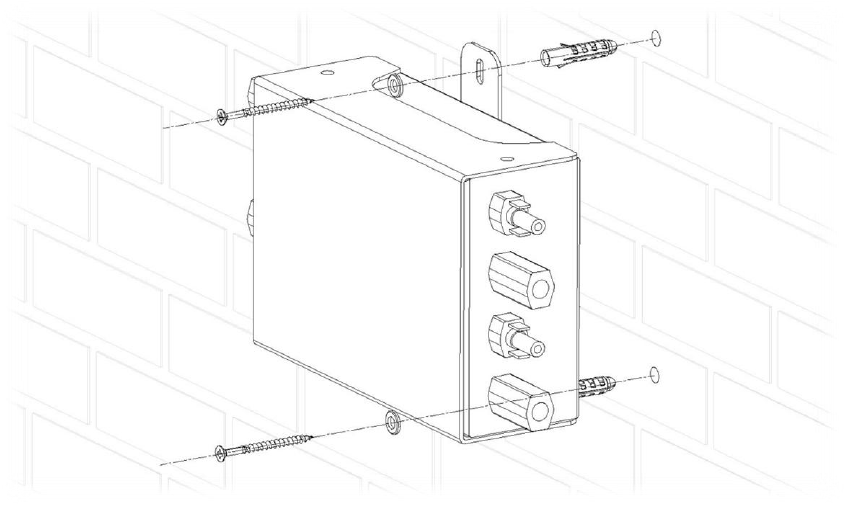

5. Check if mounted securely
6 ELECTRICAL CONNECTIONS
When installing the Ilumen PIDbox mini, the AC side of the PV plant must be switched off. Also
the DC switch of the inverter must be switched off. After the installation is done, you can switch
the DC switch back on followed by the AC side of the PV plant.
A standard AC outlet must be available on installation. This outlet should be on at all times. The
ideal solution is to have a single outlet with a single circuit breaker of 16A.
6.1 EARTH CONNECTION
To achieve the best result, the frames of the solar modules must be connected to the earth
connector of the Ilumen PIDbox mini. For optimal result you must lay a cable (2.5-4mm
2
) to the
mounting structure of the solar modules (make sure mounting structures and frames of the solar
modules are electrically conducting). It is important that all frames of all solar modules are at
the earth potential, if necessary you have to interconnect the mounting structures with
additional cables.
