Installation Manual Ilumen PIDbox Mini v1.5

5 MOUNTING

5.1 MOUNTING LOCATION REQUIREMENTS

 The installation site must be freely and safely accessible at all times without the

necessity for any auxiliary equipment.

 The mounting location should be inside a rain- and windproof location.

 Do not place the Ilumen PIDbox mini in a dusty environment.

 The ambient temperature must be between -25 and 60°C.

 Normally the PIDbox mini is installed right below the inverter.

 The ideal placement is on a flat surface. Special rubber feet can be placed under the

PIDbox mini to prevent scratching of any surface. Usage of the wall brackets of the

Ilumen PIDbox mini is needed when no flat surface is available. Always install the box so

that the power plug is pointing down.

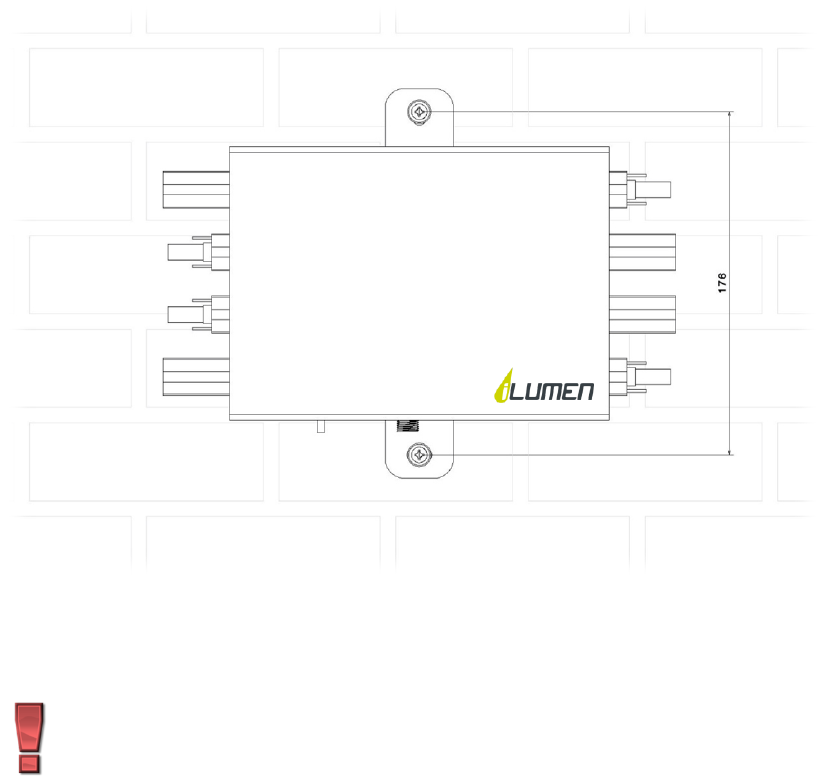

5.2 MOUNTING THE ILUMEN PIDBOX MINI USING THE WALL BRACKETS

1. Mark the positions of the drill holes on the mounting surface

2. Drill the holes

3. Insert the wall plugs (if necessary)

4. Screw the Ilumen PID Mini to the mounting surface and make sure adequate washers are

installed.

Make sure the DC power plug is pointing to the ground
