Installation Manual Ilumen PIDbox Mini v1.5

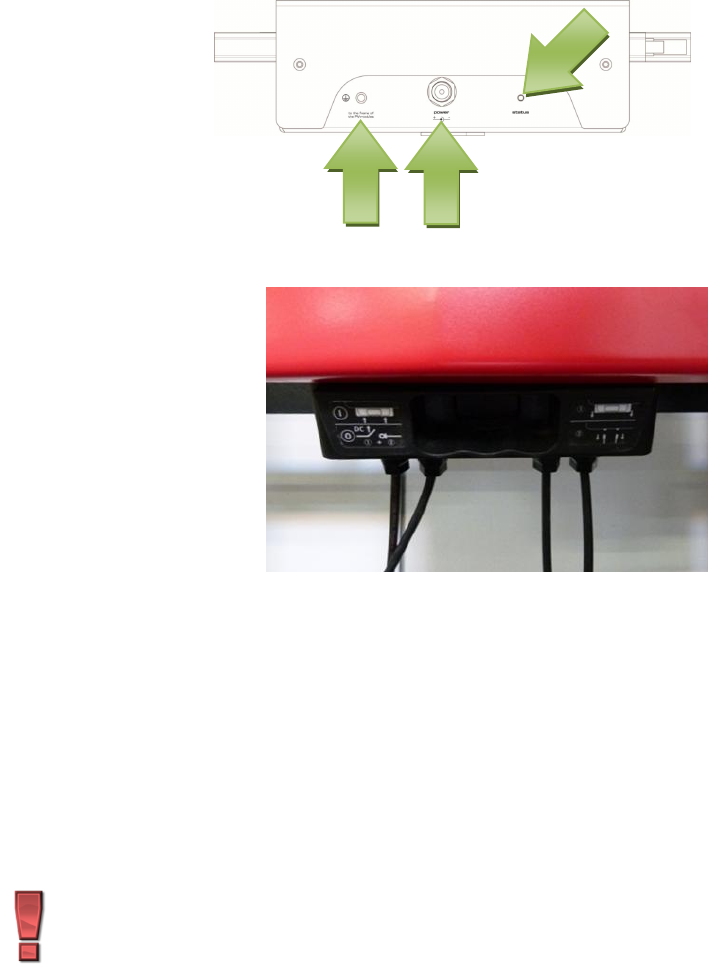

8) Plug the DC power supply into an outlet (LED of the Ilumen PIDbox mini lights up if the

PVs are producing electricity)

9) Turn the DC switch from the inverter back on followed by the AC side of the PV plant

9 DECOMMISSIONING THE ILUMEN PID SOLUTION

9.1 DISASSEMBLING THE PIDBOX MINI

Switch off the Ilumen PIDbox mini. Disconnect the Ilumen PIDbox mini from the AC grid. Wait

for minimum 20 minutes. Make sure the AC cannot be plugged in again. Disconnect the DC

switch from the inverter and wait until it is discharged. Disconnect all DC connectors going to

the PV arrays and then disconnect the lines going to the inverter. When all electrical connections

are disconnected you can dismount the Ilumen PIDbox mini.

When doing any kind of work on the PIDbox mini, always disconnect the DC

power plug from the device before unplugging any PV-cables.

9.2 PACKING THE PIDBOX MINI

To pack the PIDbox mini use the original packaging or packaging suitable for the weight and

dimensions of the PIDbox mini (see Section 12 "Technical Data").
