Installation Manual Ilumen PIDbox Mini v1.5

Each side (A and B) has a maximum current input of 20Amps. So multiple strings can be

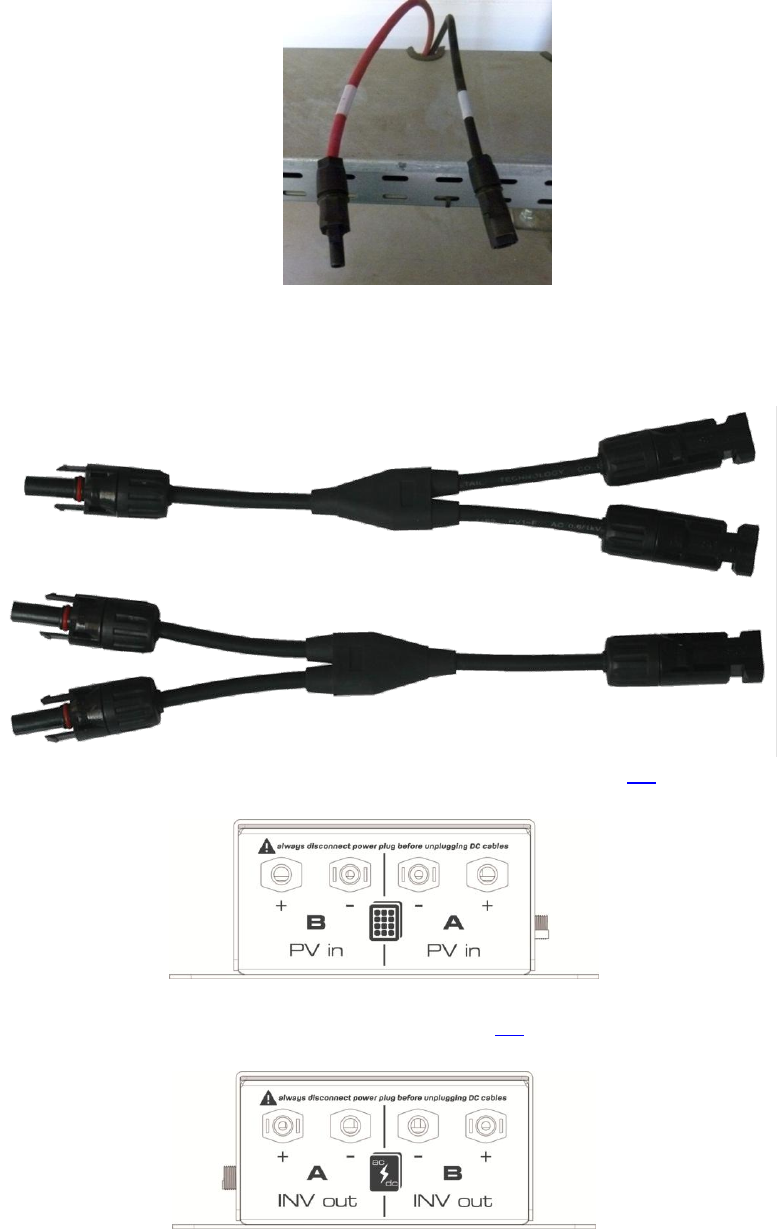

combined to form a bigger input per side. To do this a “DC combiner cable” can be

utilized. Two versions can be ordered. One with 2 and one with 3 connectors.

But always mind the maximum input current of 20Amps for each side (A and B).

5) Connect the PV array cables to the Ilumen PIDbox mini inputs (see 6.2 for details).

6) Connect the Ilumen PIDbox mini to the inverter (see 6.2 for details).

7) Connect the DC power supply to the Ilumen PIDbox mini.
