Installation guide

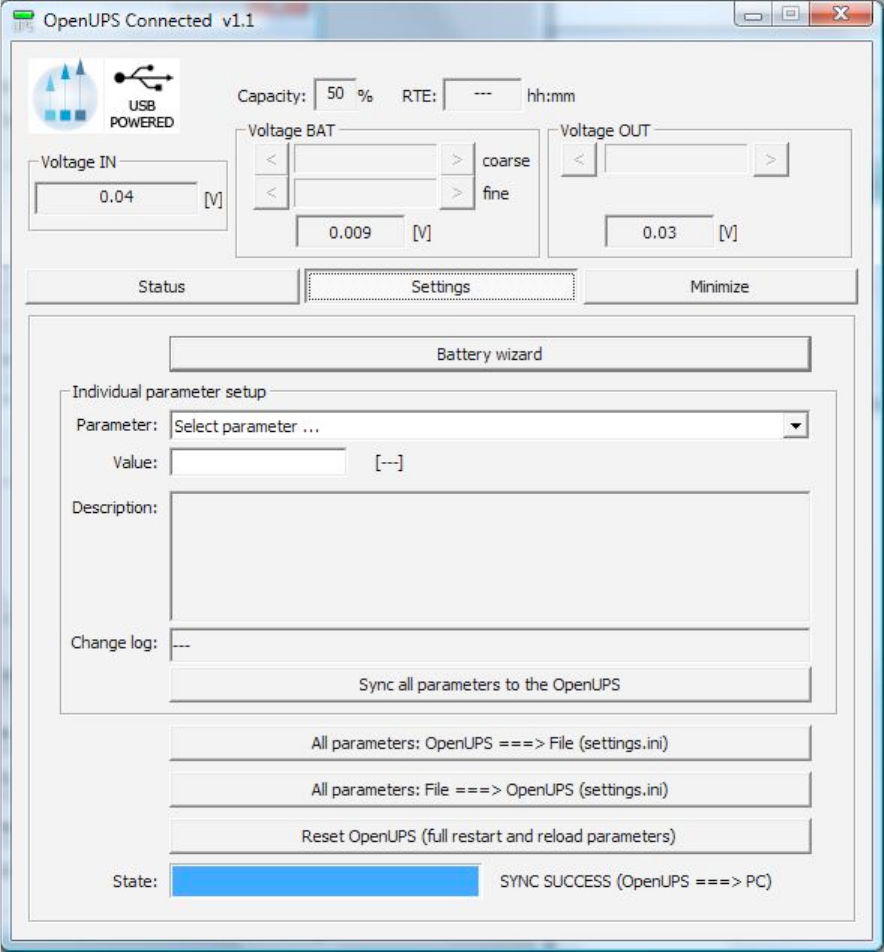

The next screen is the "Settings" one (fig 2.)
fig 2. Settings screen
This screen contains three main sections: the battery wizard, the individual
parameter setup for experienced users and the parameter save/load into/from file section.
IMPORTANT: any parameter setting or battery wizard data is taken into account by the
OpenUPS only after a full restart either with power cut from all sources (usb, battery, vin),
either by the "Reset OpenUPS" button. Do this with precaution, check the parameters and
wires before doing it !
The battery wizard permits setting up the OpenUPS for most of the basic cases.
Example is shown on fig.3
