Installation guide

2. Windows Configuration software
The configuration software provides interface for OpenUPS monitoring, logging and
setup.
It's recommended to be used by users with deeper understanding of the OpenUPS
hardware since permits setting voltages, currents and other parameters which can be
dangerous if they are set without precaution. Mini-box.com recommends using this
software only together with the "Installation guide" which explains the wiring and the
parameters of the OpenUPS.
The configuration software has two main screens (Status and Settings) and a
header with the important voltage/current values.

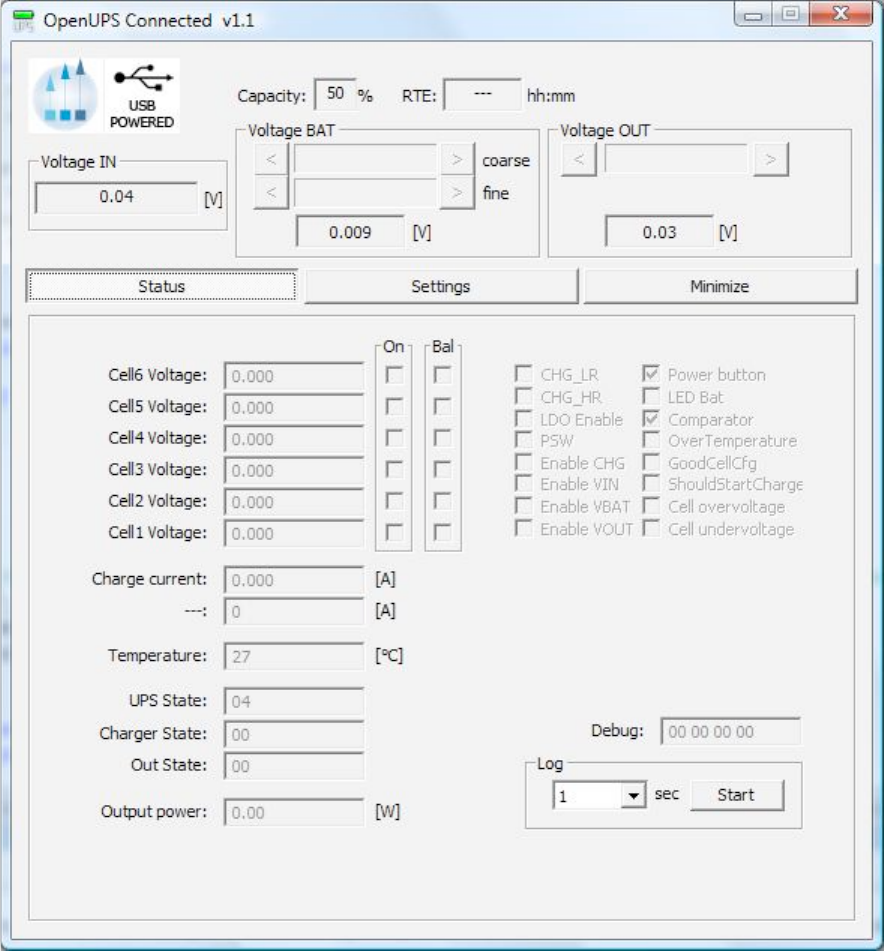

The first main screen is the "Status". Example of this screen is shown in the next
image (fig1.)
fig 1. Status screen
