Tapping this area displays the [Alarm Summary] menu, where you can view alarm

messages.

7. Patient data area

This user configurable area can display parameter/waveform data. The parameter/

waveform is labeled in the upper left corner. You may also tap this area to display

the Setup menu for the corresponding parameter/waveform.

For details about the touch screen operations, refer to "Basic Operations" on page 3 -

10.

2.7.2 On-Screen Keyboard

The TM80/TM70 uses an on-screen keyboard to enter alphanumeric information, such as

the device name and passwords.

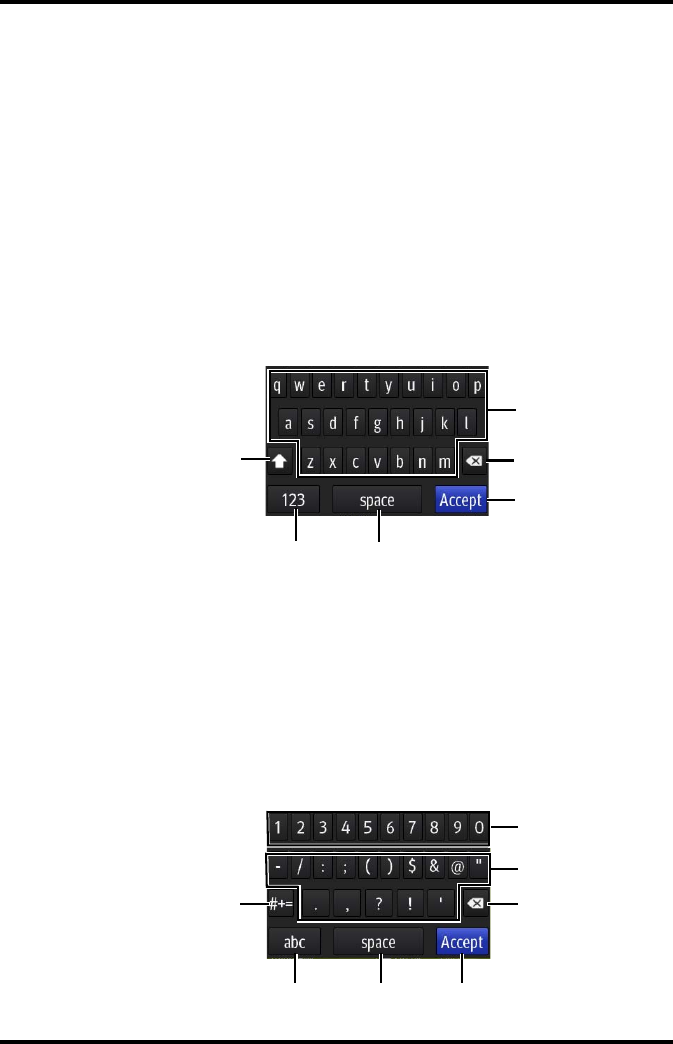

2.7.2.1 Alphabetic Keyboard

1. Alphabetic buttons: tap to input the desired alphabetic text.

2. Delete button: tap to erase the text to the left of the cursor.

3. Accept button: tap to save the settings and exit the keyboard.

4. Space button: tap to input a space.

5. Numeric switch button: tap to switch to the numeric layout.

6. Case shift button: tap to switch the case of the letter.

This switch is active for one character entry.

2.7.2.2 Numeric Keyboard
