User's Manual

Transfer Tab Patient Setup Functions
5 - 20 0070-00-0575-50 Panorama™ Operating Instructions
5.2.4 Sidebar Buttons
The following sidebar buttons are used to expand the functionality of this tab.
Recover Patient
When a Central To Central Transfer Without Device has failed, the Recover
Patient sidebar button is used to retrieve patient information that was collected in the Failed
Transfer List.
The list box in the Recover Failed Transfer Patients view (FIGURE 5-13) has three
columns labeled First Name, Last Name and ID. The list contains at least two of these three
demographic indicators.
1. Select a destination tile on the Source Panorama to which the patient information is to be
recovered. Ensure that the destination tile has a device assigned.
2. Select the Recover Patient sidebar button. The Recover Failed Transfer Patients
view displays.

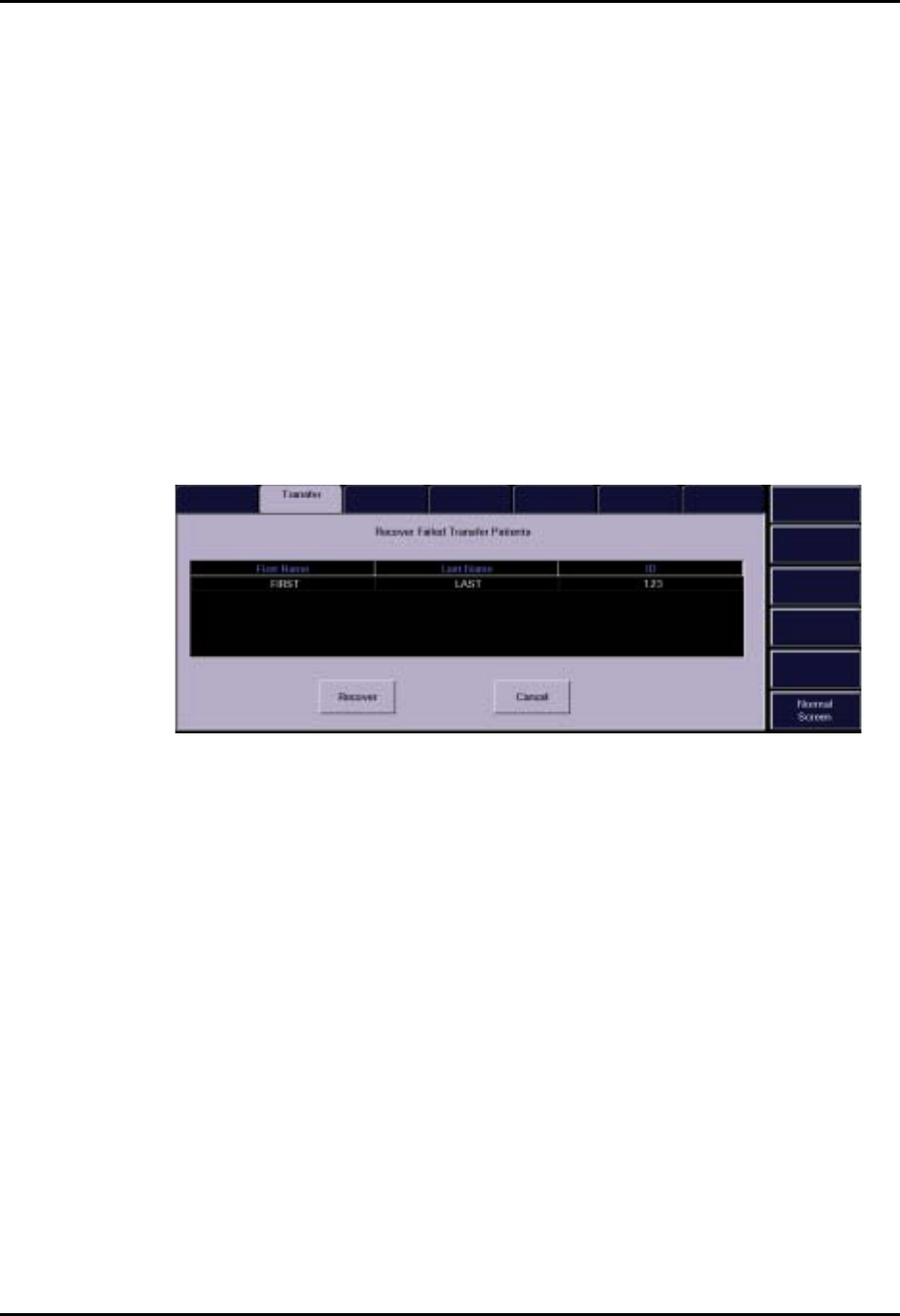

FIGURE 5-13 Recover Failed Transfer Patients View
3. Select the patient whose information is to be recovered from the list.
• Select the Recover button. The message All of the patient's data will be deleted
in the destination tile. Do you still want to continue with the transfer? is
displayed with the following two choices:
•The Yes button deletes all of the patient’s data that may have been previously stored
for the destination tile, returns to the Transfer tab and the recovery process
commences. When the recovery is complete, the patient information is removed from
the Failed Transfer List and the destination tile displays the recovered patient
information except in the following situations:
•The No button terminates the recovery process and returns to the Transfer tab.
• Select the Cancel button to return to the Transfer tab.
If the destination tile is in Standby mode when the recovery is complete, the digital data
displays but the waveform does not display. Upon returning to normal monitoring mode,
the waveform is displayed.
If the destination tile is in a Communication Lost state when the recovery is complete,
the tile is blank and all buttons on the Transfer tab are unavailable. The tile remains
blank until communication has been re-established.
