User's Manual

Transfer Tab Patient Setup Functions
5 - 14 0070-00-0575-50 Panorama™ Operating Instructions
5.2 Transfer Tab
The Transfer tab (FIGURE 5-10) enables the transfer of a patient’s data from one device to
another. Two types of transfers can be performed through the Transfer tab:
• Room To Room Transfer Without Device
• Central To Central Transfer Without Device
This section describes the following:
• Accessing the Transfer Tab
• Room To Room Transfer Without Device
• Central To Central Transfer Without Device
• Sidebar Buttons
• Troubleshooting
5.2.1 Accessing the Transfer Tab
1. From the menu bar, select the Patient Setup menu button. The tabs associated with
patient setup are displayed
2. Select the Transfer tab (FIGURE 5-10). The Transfer tab is displayed.
.

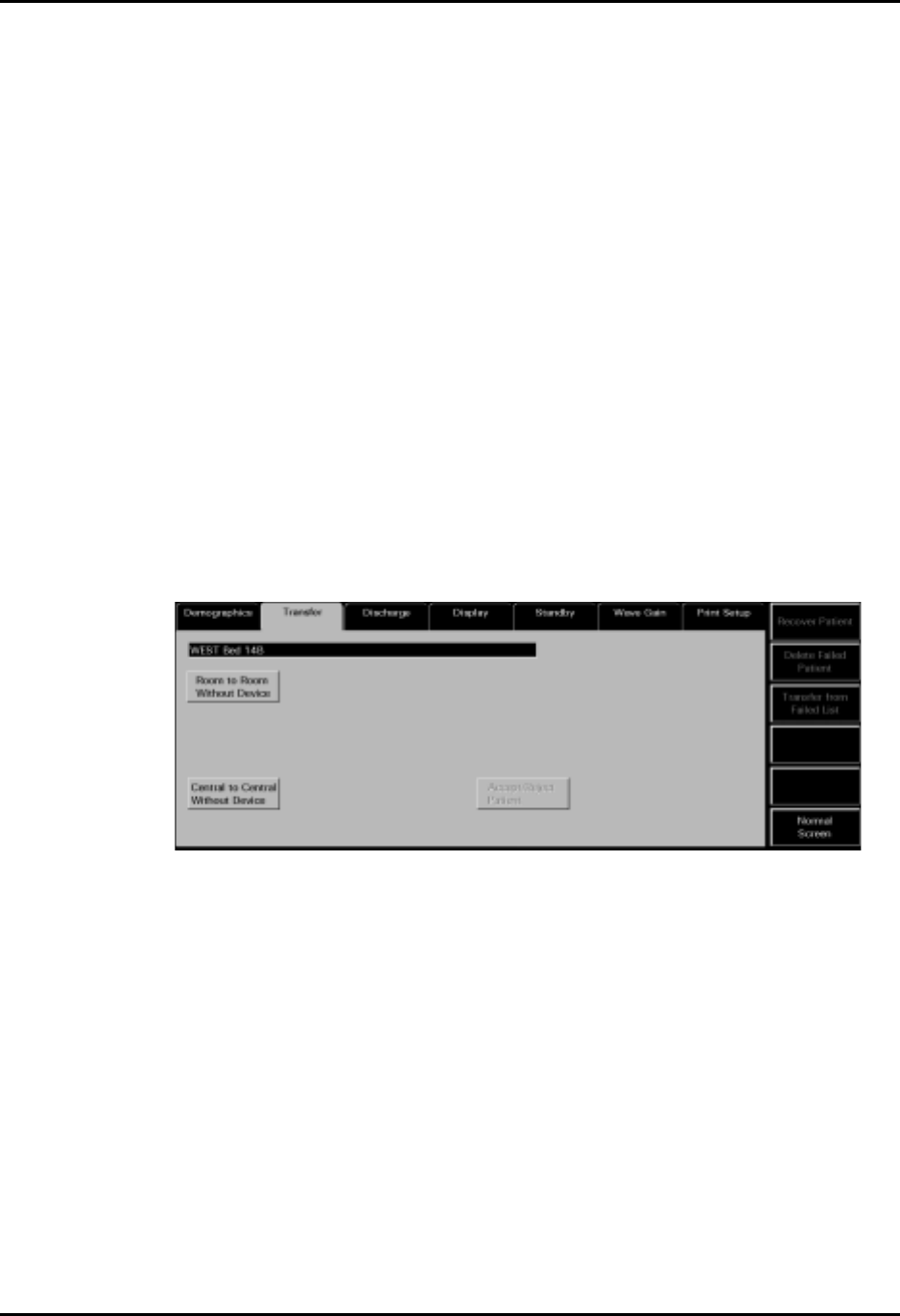

FIGURE 5-10 Transfer Tab
5.2.2 Room To Room Transfer Without Device
A Room To Room Transfer Without Device is used to transfer patient data stored at
the Panorama Central Station from one patient tile (the source) to another (the destination).
Historical patient data is preserved upon successful completion of the transfer.
NOTE: For information on changes that occur at the destination tile
when the transfer is complete, refer to ‘‘Effects of the
Transfer’’ on page 5-15.
The Room To Room Without Device button is enabled under the following conditions:
• When a patient tile actively monitoring a patient is selected as the source
• When a patient tile actively monitoring a patient, but has been placed in Standby
mode, is selected as the source
