Lead Placement Lead Placement
AHA Modified Chest Lead (MCL) Monitoring with a 3-wire Lead Set

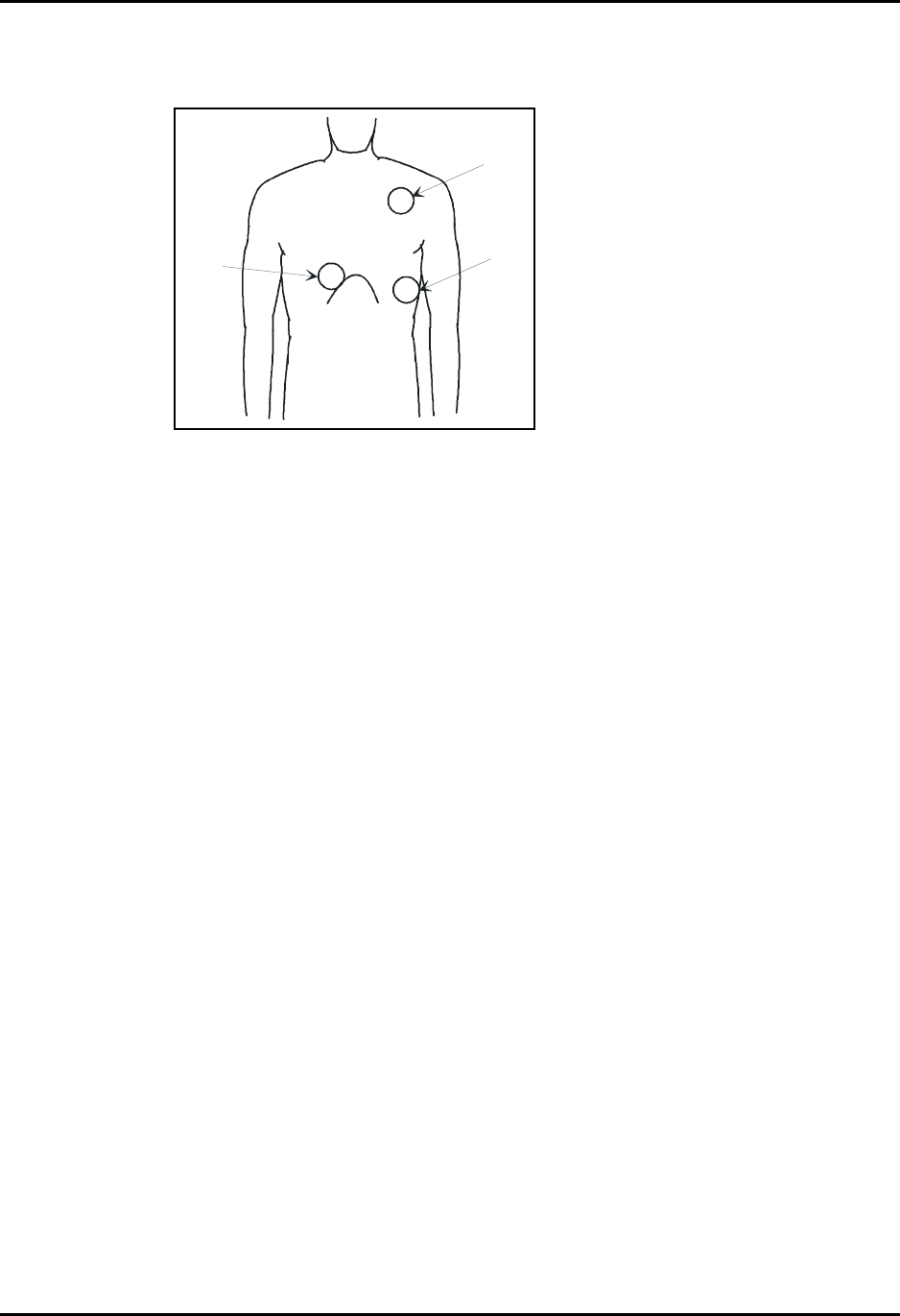

FIGURE 4-9 MCL Monitoring with a 3-wire Lead Set (AHA)
Some patients may require monitoring in a MCL configuration.
• Place RA (white) electrode under patient left clavicle, mid-clavicular line within the rib
cage frame.
• Place LA (black) electrode right sternal border, fourth intercostal space within the rib cage
frame.
• Place LL (red) electrode on the patient’s lower left abdomen within the rib cage frame.
• Select ECG Lead I for MCL
1
monitoring. Lead I is the direct electrical line between the RA
(white) electrode and the LA (black) electrode.
• Select ECG Lead II for MCL
6
monitoring. Lead II is the direct electrical line between the
RA (white) electrode and the LL (red) electrode.
LL
LA
RA
White
Red
Black
