Lead Placement Lead Placement

IEC Standard 12-wire Lead Set

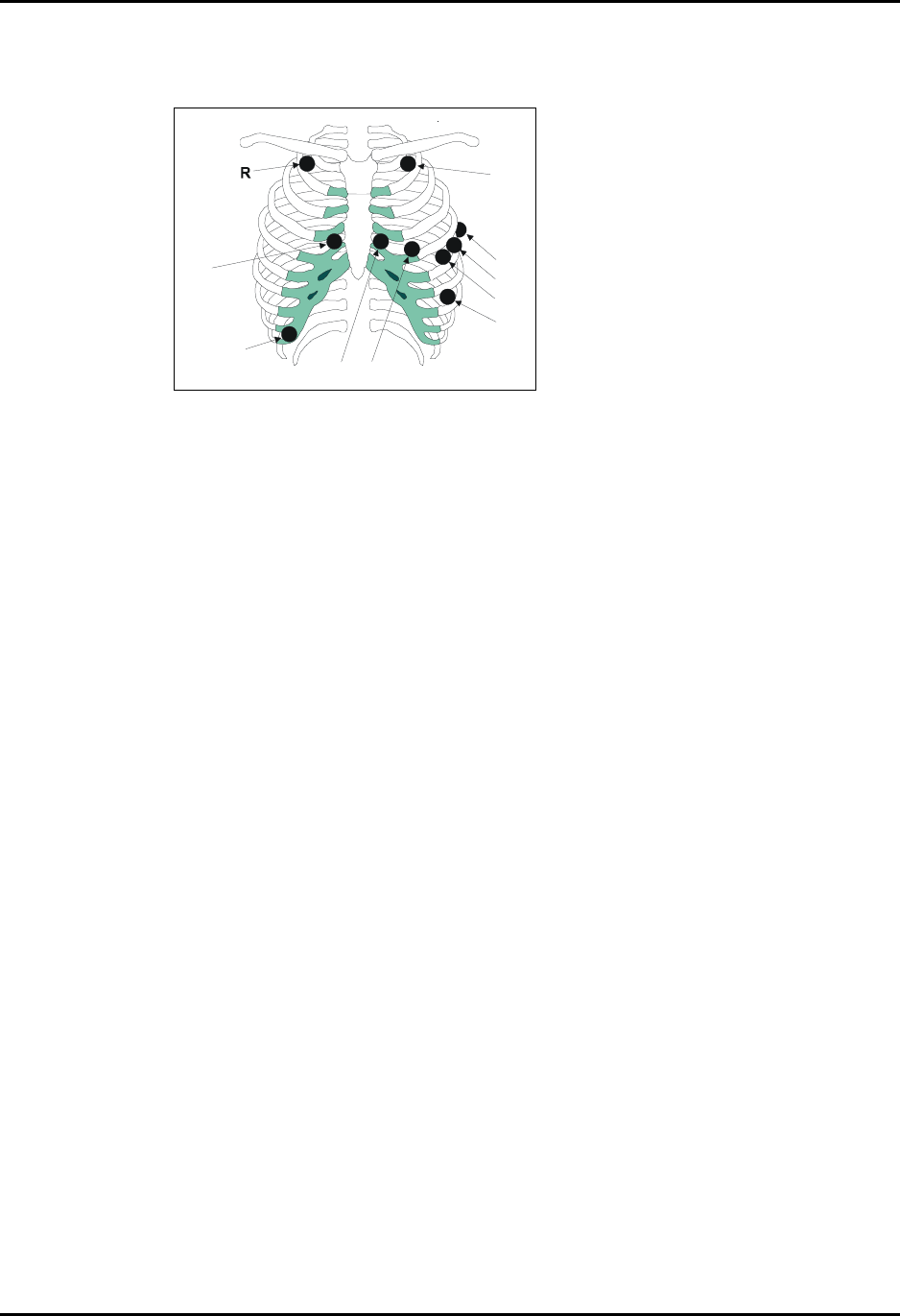

FIGURE 4-6 12-wire Lead Placement (IEC)

• Place R (red) electrode under the patient’s right clavicle, mid-clavicular line within the rib

cage frame.

• Place L (yellow) electrode under the patient’s left clavicle, mid-clavicular line within the rib

cage frame.

• Place F (green) electrode on the patient’s lower left abdomen within the rib cage frame.

• Place N (black) electrode on patient’s lower right abdomen within the rib cage frame.

• Place the C1 (white) electrode (Chest lead) in the fourth intercostal space, right sternal

border.

• Place the C2 (white) electrode (Chest lead) in the fourth intercostal space, left sternal

border.

• Place the C3 (white) electrode (Chest lead) midway between C2 and C4 on a straight

line.

• Place the C4 (white) electrode (Chest lead) in the fifth left intercostal space, mid-clavicular

line.

• Place the C5 (white) electrode (Chest lead) in the fifth left intercostal space, anterior

axillary line.

• Place the C6 (white) electrode (Chest lead) in the fifth left intercostal space, mid-axillary

line.
