Lead Placement Lead Placement
4.4.2 International Electro-Technical Commission (IEC) Lead Placement
The IEC lead placement is available for 3, 5 and 12-wire lead set configurations.
IEC Standard 3-wire Lead Set

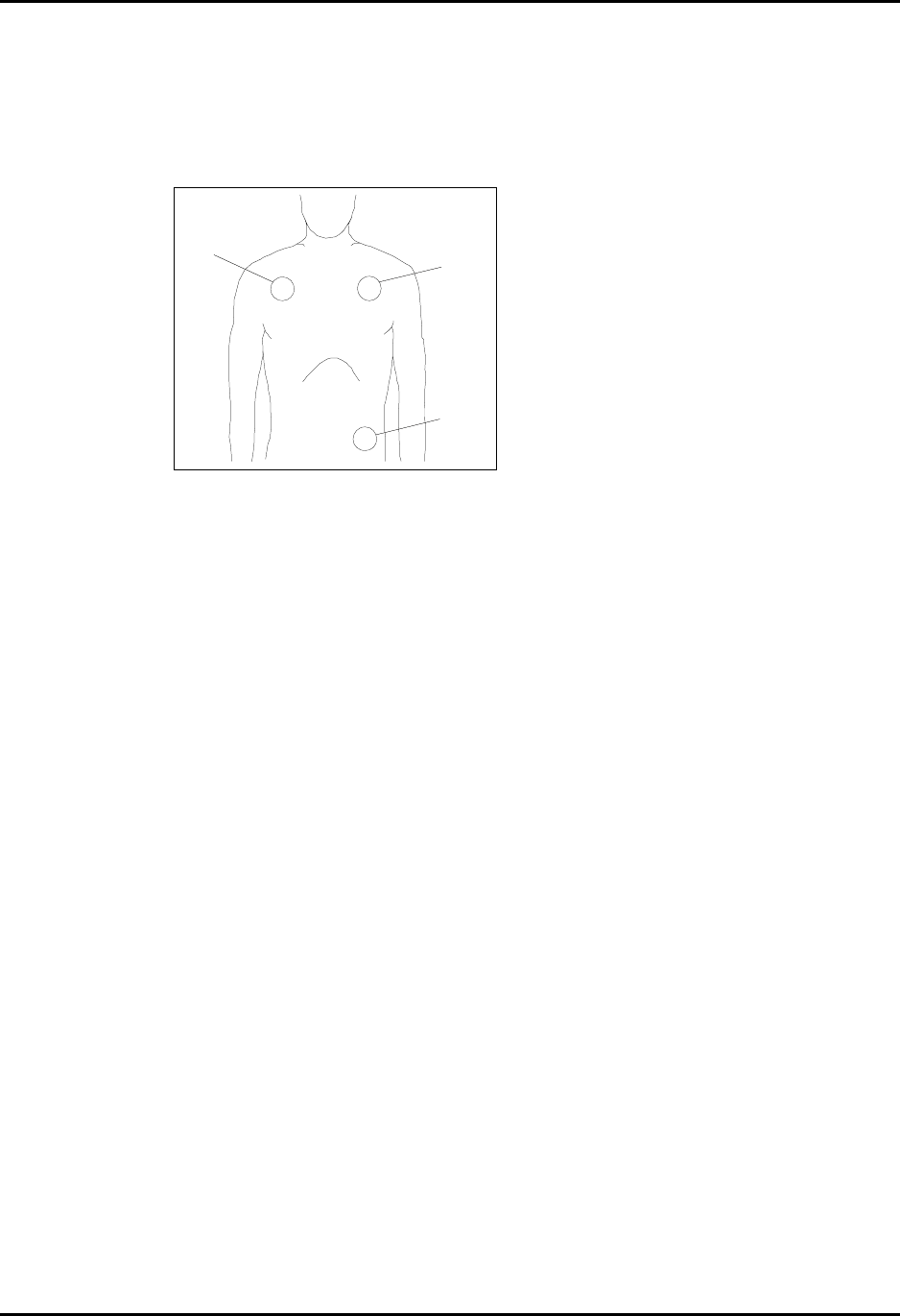

FIGURE 4-4 3-wire Lead Placement (IEC)
• Place R (red) electrode under patient right clavicle, mid-clavicular line within the rib cage
frame.
• Place L (yellow) electrode under patient left clavicle, mid-clavicular line within the rib cage
frame.
• Place F (green) electrode on the patient’s lower left abdomen within the rib cage frame.
Red
Yel low
Green
R
L
F
