Getting Started The Main Screen
The following guidelines regulate the display of messages in the Patient Status line:
• The Patient Status line displays a patients demographic information, if available.
Demographic information is shown in white text.
• The Patient Status line displays all Alarm Priority 1 physiological messages in red text.
• The Patient Status line displays Alarm Priority 2/3 physiological messages in yellow text.
• The Patient Status line displays the Mute Time message, if alarms have been silenced.
The Mute Time message is shown in the color associated with the alarm priority.
• The Patient Status line displays technical event messages in white text.
Waveform Data Tile
The Waveform Data tile (FIGURE 2-3) displays the waveform data that was selected for the
patient tile. The Waveform Data portion of a patient tile is capable of displaying two of the
following waveform data parameters: HR (ECG), Respiration, CO
2
, SpO
2
, IBP, and ST. The
available parameters are dependant on the selected monitoring device. For information
regarding supported devices, and parameters measured, refer to ‘‘Supported Devices’’ on
page 1- 4.
Waveforms display in a patient tile using the following guidelines:
• Each waveform tile includes its own baseline.
• Waveforms are shown in a patient’s configured color, wave gain, pacer enhancement
and filter settings. If individual configurations are not set, the system default settings are
used.
For information regarding the selection of patient waveform data, refer to the ‘‘Display Tab’’
on page 5- 29. For information regarding the parameters that can be shown in the waveform
tile, refer to ‘‘Parameter Specifications’’ on page 13- 2.
2.2.2 Menu Bar
The Menu bar (FIGURE 2-4) is used to view system status, navigate the Panorama Central
Station, and view the system time and date. The menu bar is fixed at the bottom of the
screen.
The sections of the Menu Bar include:
•System Status Line
• Menu Buttons
• System Date/Time

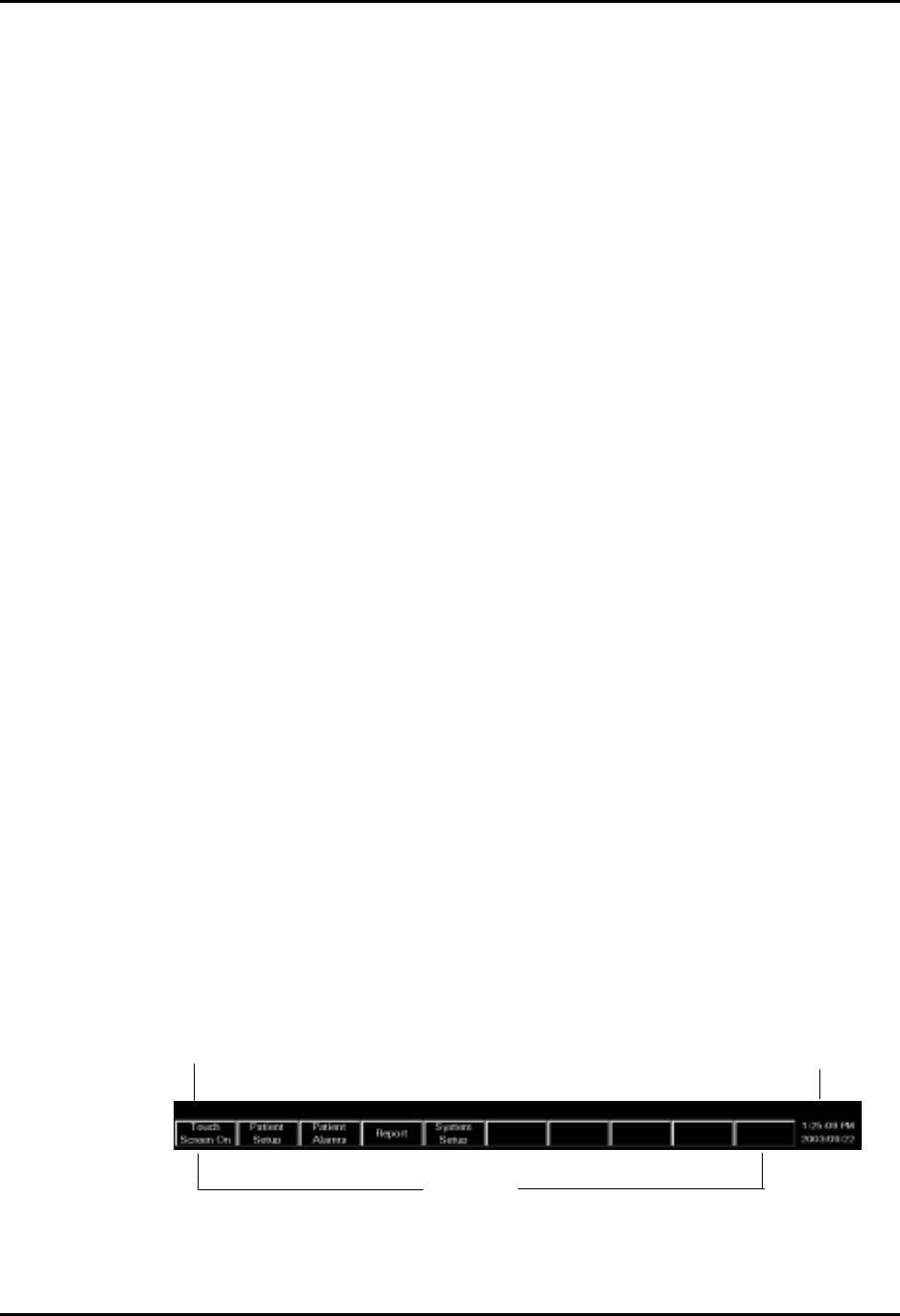

FIGURE 2-4 Panorama Menu Bar
System Status Line
System Date/Time
Menu
Buttons
