Indicator Lights Telepack (Optional)

10 - 6 0070-00-0575-50 Panorama™ Operating Instructions

The ECG Lead LED indicator lights remain off except during the initial power up phase and

during a lead test sequence. For additional information, refer to “Lead Placement” on

page 4-4.

Press the Test/CHECK button to verify the Telepack’s ECG lead connections.

NOTE: When the Test/CHECK button is pressed, all of the device LED

indicator lights are tested simultaneously.

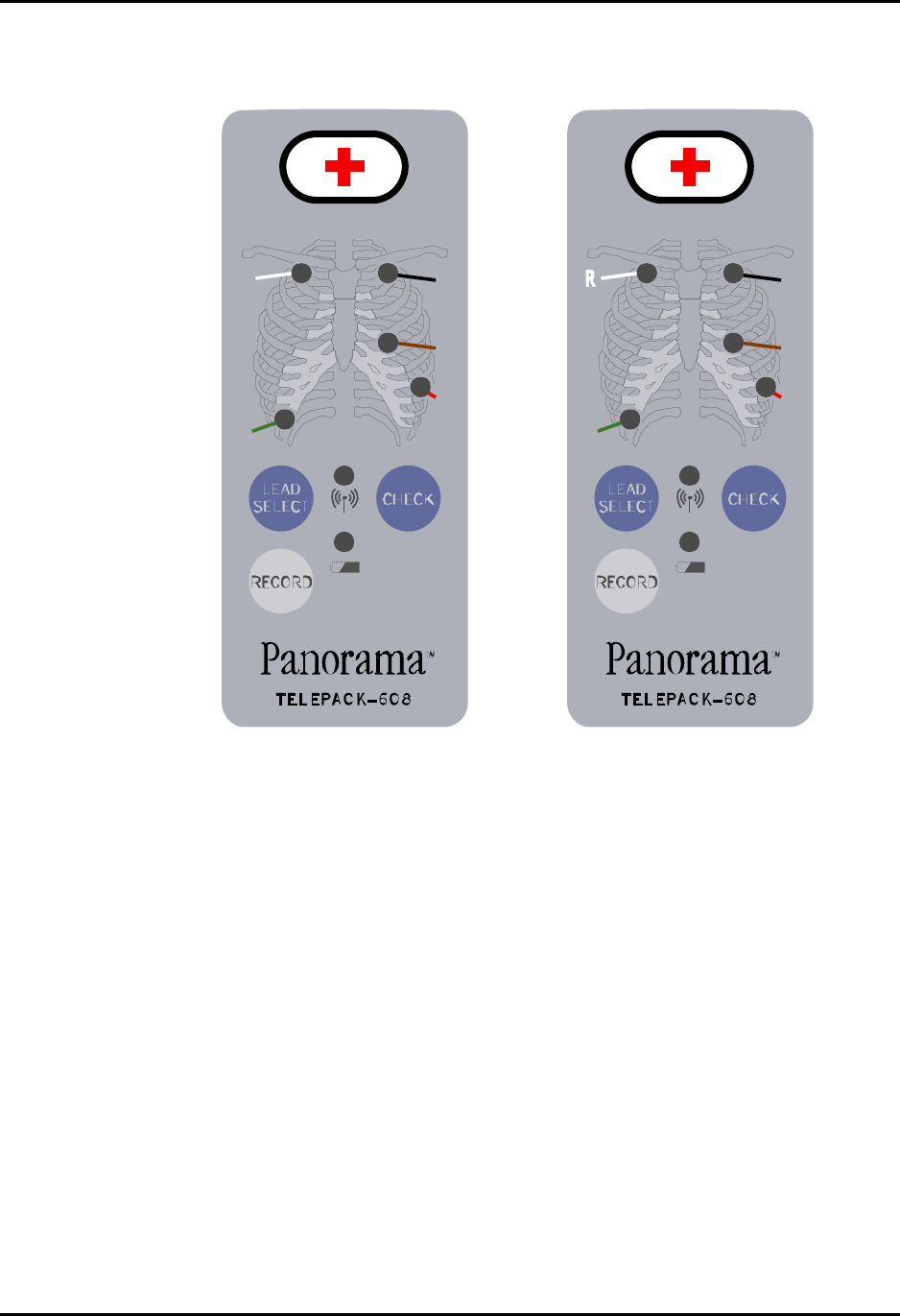

FIGURE 10-3 Front View of

Telepack-608 (AHA)

FIGURE 10-4 Front View of

Telepack-608 (IEC)

• White RA (right arm) • Red R (right arm)

• Black LA (left arm) • Yellow L (left arm)

•Brown V (chest) •White C (chest)

• Green RL (right leg) • Black N (right leg)

• Red LL (left leg) • Green F (left leg)
