Panorama™ Operating Instructions 0070-00-0575-50 10 - 5
Telepack (Optional) Indicator Lights
10.3 Indicator Lights
The Telepack uses LED indicator lights to verify the functionality of the device. The indicator
lights on the device include the following:
• 3-wire (for Telepack-608 only) and 5-wire ECG lead indicator lights
• 1 Link Status indicator light
• 1 Battery Status indicator light
10.3.1 ECG Lead Diagram LED Indicator Lights

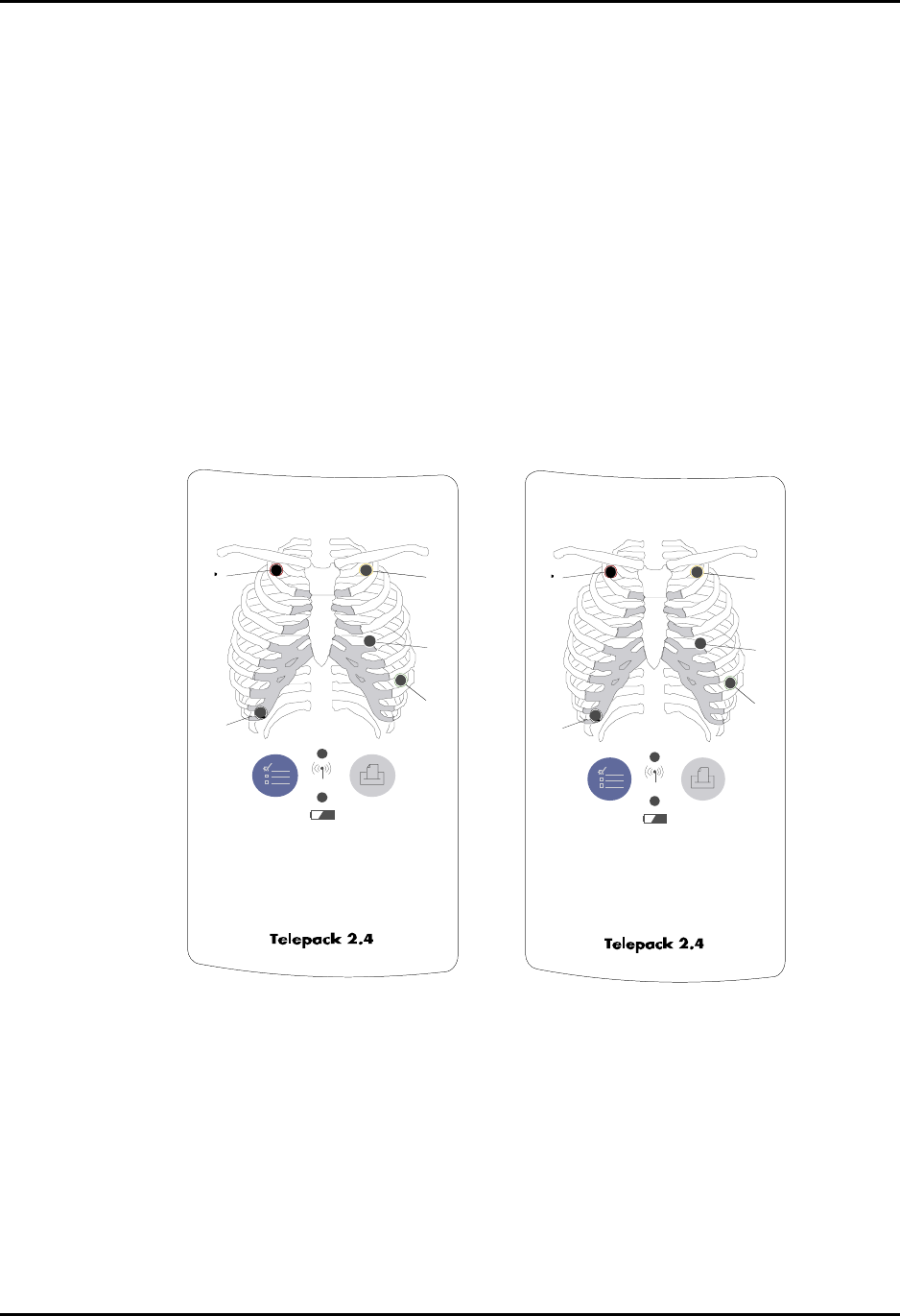

The Telepack ECG Lead diagram’s LED indicator lights show the status of the lead
connections with the patient. The Telepack‘s ECG Lead LED indicator lights (FIGURE 10-1
and FIGURE 10-2), include five green LED indicators that correspond to the following lead
connections:
FIGURE 10-1 Front View of
Telepack-2.4 (AHA)
FIGURE 10-2 Front View of
Telepack-2.4 (IEC)
• White RA (right arm) • Red R (right arm)
• Black LA (left arm) • Yellow L (left arm)
•Brown V (chest) •White C (chest)
• Green RL (right leg) • Black N (right leg)
• Red LL (left leg) • Green F (left leg)
Panorama
V
RA LA
LL
RL
Panorama
C
RL
F
N
