NOTE: Changing the Arrhythmia option will affect all newly
admitted patients and will have no affect on patients
currently being monitored.
Settings (Telepack)
Select the Settings sidebar button to establish the default ECG monitoring filter to be
performed for the Telepack and to select the ECG leads for ST monitoring is specific to a
Telepack device.
• The Monitor mode for ECG filtering establishes the frequency response range for non-ST
ECG monitoring.
• The ST mode for ECG filtering establishes the frequency response range for ST diagnostic
monitoring.
NOTE: The Telepack can only have one type of ECG filtering
enabled at any given time (ST mode or Monitor mode).
To configure the default ECG monitoring filter, follow these steps:
1. Select the Settings sidebar button in the Unit Choices tab. The Settings dialog box
(FIGURE 9-18) is displayed.

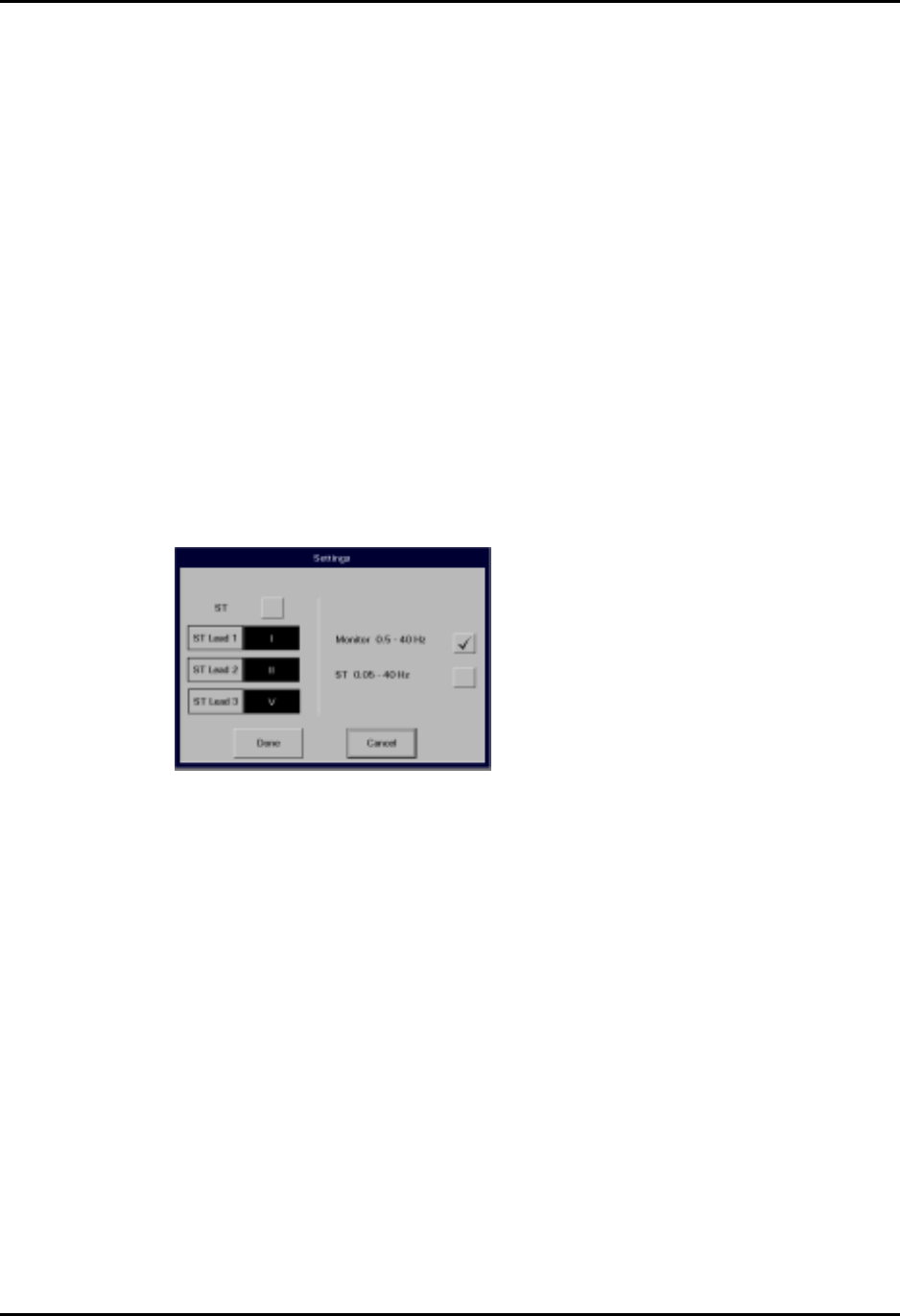

FIGURE 9-18 Settings Dialog Box
2. Select the ST check box button to enable or disable ST analysis for the selected patient.
• A checkmark in the ST box indicates that ST analysis is enabled.
• An empty box indicates that ST analysis is disabled.
3. If a 5 lead cable is being utilized select the ST leads to be analyzed.
• Select the ST Lead 1 button to select the first ST monitoring lead.The selections
available for ST Lead 1 include I, II, III, aVR, aVL, aVF and V.
• Select the ST Lead 2 button to select the second ST monitoring lead.The selections
available for ST Lead 2 include I, II, III, aVR, aVL, aVF and V.
• Select the ST Lead 3 button to select the third ST monitoring lead.The selections
available for ST Lead 3 include I, II, III, aVR, aVL, aVF and V.
NOTE: The lead choices made for ST Lead 1, ST Lead 2 and ST Lead
3 will be mutually exclusive.
4. Enable or disable either the Monitor Filter or the ST Filter.
• A checkmark in the Monitor Filter box indicates that the monitor filter is enabled.
• An empty Monitor Filter box indicates that the monitor filter is disabled.
