User's Manual

Panorama™ Operating Instructions 0070-00-0575-50 9 - 37
System Setup Functions Unit Priorities Tab
9.13 Unit Priorities Tab
The Unit Priorities tab (FIGURE 9-16) selects the default order for parameters in the
Panorama Central Station. The settings in the Unit Priorities tab will determine the initial
order in which parameters in the Main Screen, Bedside tab, Trends tab and Event (List) tab
areas are shown.
This section includes the following:
• Accessing the Unit Priorities Tab
• Setting a Default Order in the Unit Priorities Tab
• Sidebar Button - Normal Screen
• Troubleshooting
9.13.1 Accessing the Unit Priorities Tab
1. From the menu bar, select the System Setup button. The first set of System Setup tabs
is displayed.
2. Select the Installation Setup tab. The Installation Setup tab is displayed.
3. Enter the correct System password. The next set of System Setup tabs is displayed.
4. Select the More tab. The next set of System Setup tabs is displayed.
5. Select the Unit Priorities tab.

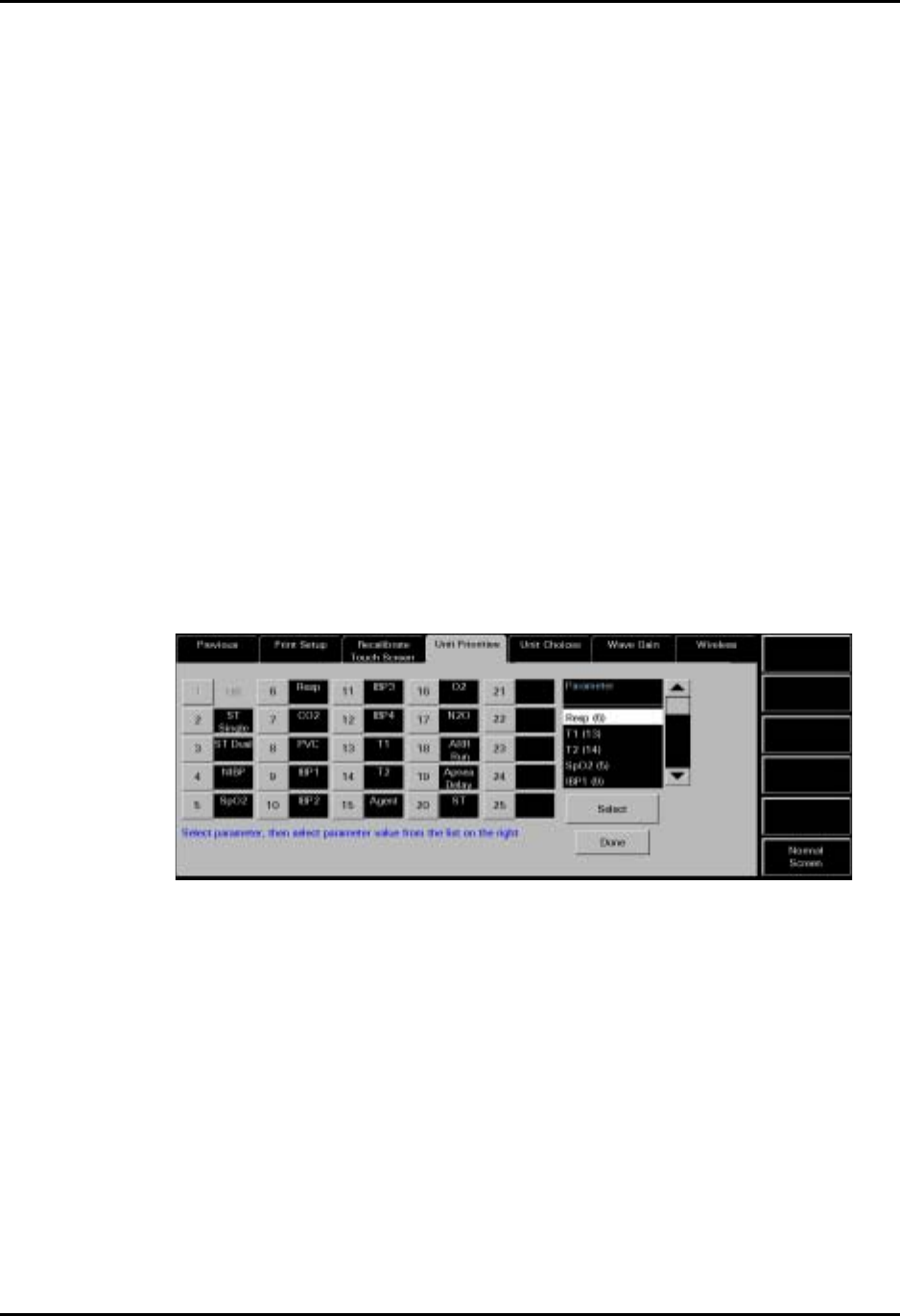

FIGURE 9-16 Unit Priorities Tab
9.13.2 Setting a Default Order in the Unit Priorities Tab
This section outlines how to select a parameter order in the Unit Priorities tab.
Selecting the Unit Priority Order
1. Select a Unit Priority number button.
The parameter with the number 1 priority will always be Heart Rate.
2. Select a parameter tile from the Parameter list.
A parameter has been selected when it changes from white text with a black
background to black text with a white background.
NOTE: Parameters show their current unit priority position in
parentheses next to their name in the Parameter list.
