User's Manual

Panorama™ Operating Instructions 0070-00-0575-50 9 - 27
System Setup Functions Date/Time Tab
9.8 Date/Time Tab
The Date/Time tab (FIGURE 9-10) configures the default date and time formats used
throughout the Panorama Central Station, and is used to set the system time and date.
This section includes the following:
• Accessing the Date/Time Tab
•Set Date/Time
• Sidebar Button - Normal Screen
• Troubleshooting
9.8.1 Accessing the Date/Time Tab
1. From the menu bar, select the System Setup button. The first set of System Setup tabs
is displayed.
2. Select the Installation Setup tab. The Installation Setup tab is displayed.
3. Enter the correct System password. The next set of System Setup tabs is displayed.
4. Select the Date/Time tab.

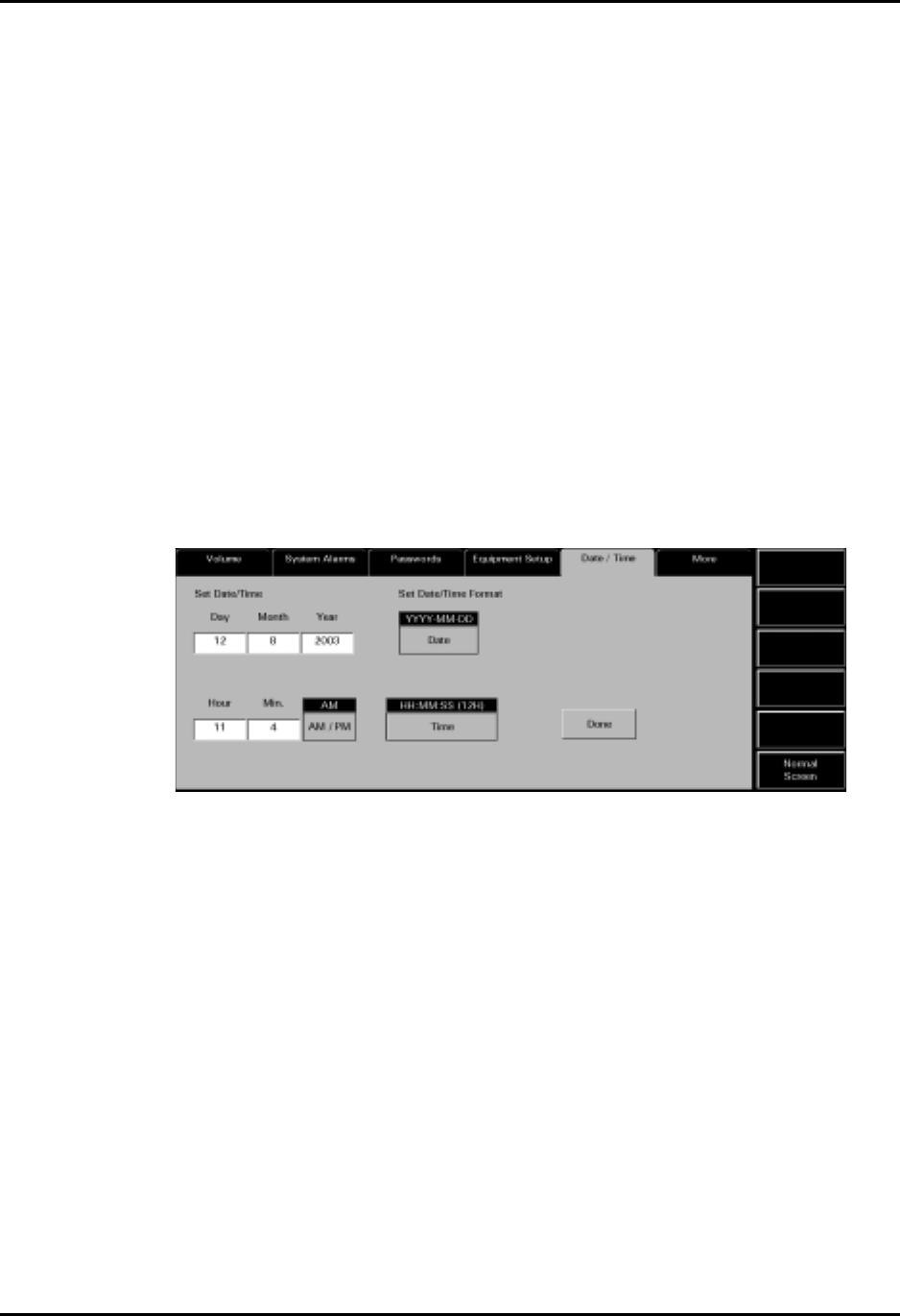

FIGURE 9-10 Date/Time Tab
9.8.2 Set Date/Time
The settings configured in the Date/Time tab are the settings that will be used for all date/
time related functions in the Panorama Central Station.
Setting a Date in the Date/Time Tab
1. Select the Day field in the Date/Time tab.The keyboard dialog box displays. The
range available is shown on the bottom of the dialog box.
2. Using the keyboard dialog box, enter the number that represents the current day of the
month.
• Select the Enter button on the keyboard dialog box to accept the day that was
entered. The number is entered in the Day field.
• Select the backspace button (<==) to clear a character that was entered in the dialog
box.
• Select the Close button to discard the entry in the dialog box and return to the Date/
Time tab. The Day field will remain unchanged until the Done button is pressed.
