9.4 Volume Tab
The system Volume tab (FIGURE 9-4) adjusts the volume levels at the Panorama Central
Station. Volume levels can be adjusted for Touch Click, System alarms and Physiological
alarms.
This section includes the following:
• Accessing the Volume Tab
• Setting Volume Levels
• Sidebar Button - Normal Screen
• Troubleshooting
9.4.1 Accessing the Volume Tab
1. From the menu bar, select the System Setup button. The first set of System Setup tabs
are displayed.
2. Select the Installation Setup tab. The Installation Setup tab is displayed.
3. Enter the correct System password. The next set of System Setup tabs is displayed.
4. Select the Volume tab.

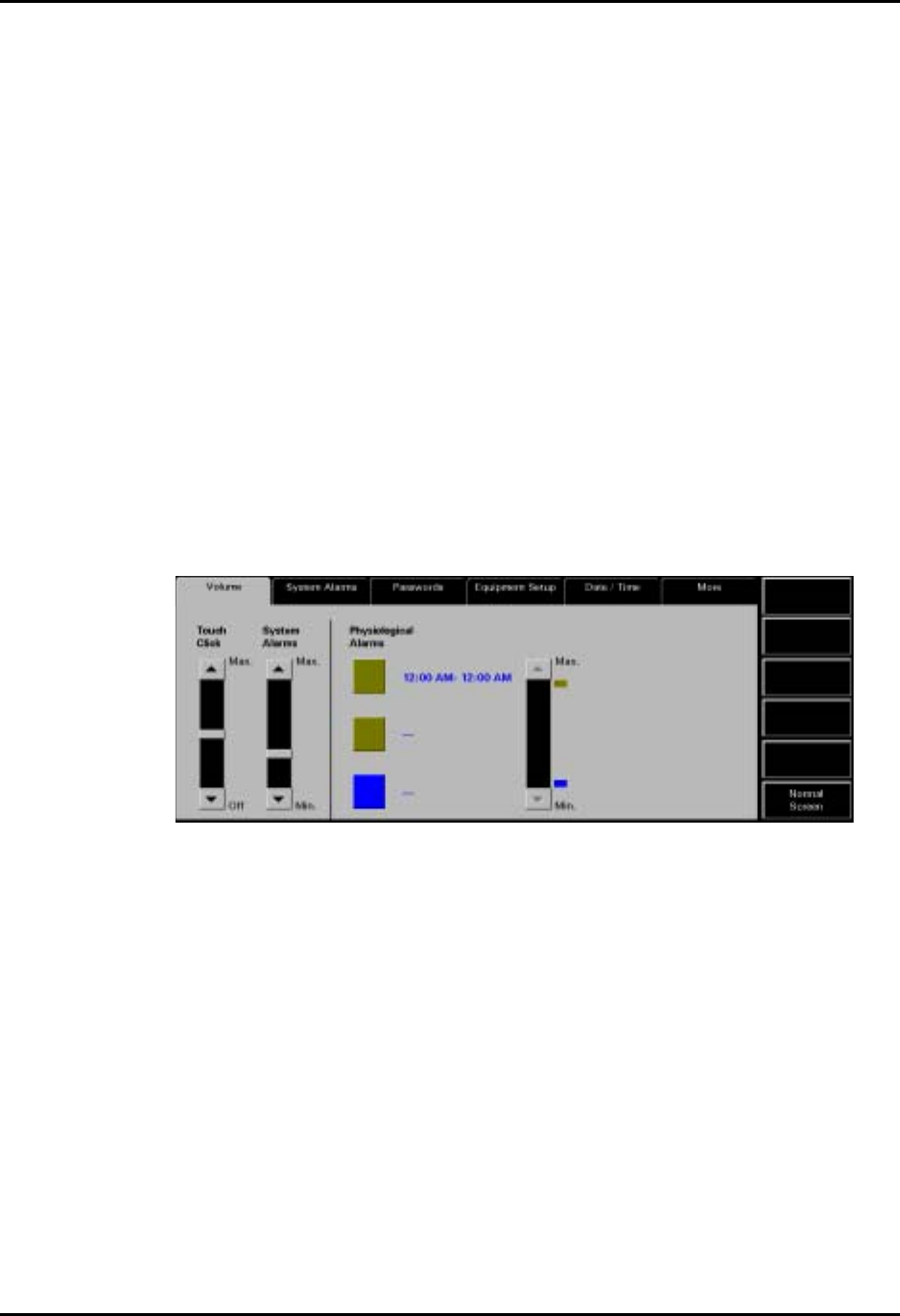

FIGURE 9-4 Volume Tab
CAUTION: Do not block the speakers. Set the volume levels so that
alarms can be heard at all times, as described in this
Operation Manual.
