Report Functions Additional Reports

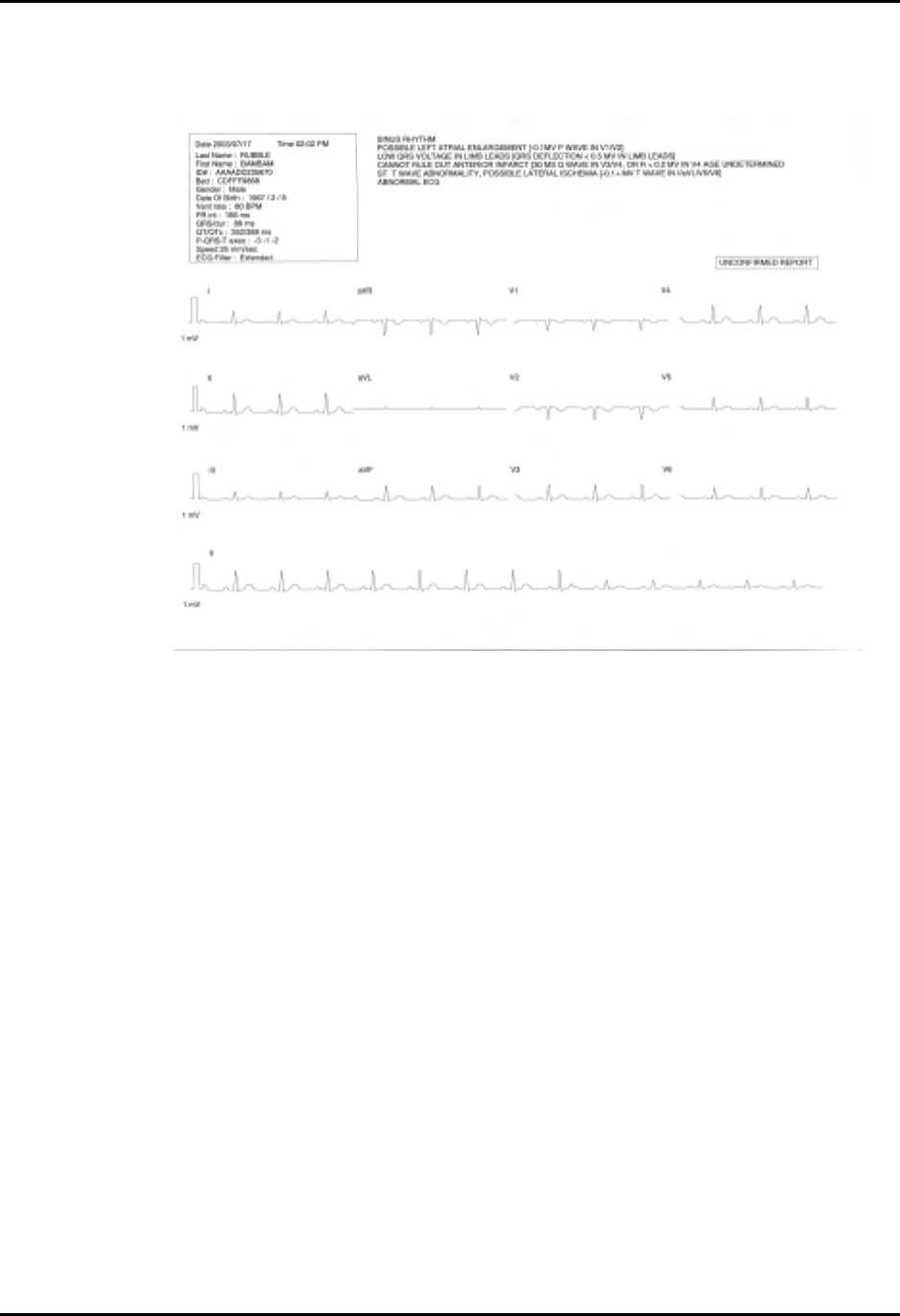

FIGURE 8-26 shows an example of the 12-lead Report.
FIGURE 8-26 12-lead Report
8.4.5.1 Header
The 12-lead Report’s page header provides the title of the report and basic demographic
information, if it is available. The demographic information includes the patient’s first and last
name, identification number, bed number, weight, height and doctor.
If the demographic data was not previously entered in the system, only the demographic
label is shown.
• Interpretation Area: The Interpretation area of the 12-lead report shows an analysis of the
collected data.
If data is missing from the report the Unable to Obtain Interpretation. Enter
Patient Date of Birth and Gender message is displayed.
If the patient’s Patient Size is not set to Adult, the Unable to Obtain Interpretation.
Patient not an adult message is displayed.
If the patient is less than 18 years old, the Unable to Obtain Interpretation.
Patient Must Be At Least 18 Years Old message is displayed.
For additional information regarding the specific messages that appear in this area refer
to the Physician’s Guide to Computerized ECG Analysis P/N 0070-00-0534-01).
