User's Manual

Panorama™ Operating Instructions 0070-00-0575-50 8 - 23
Report Functions Patient Reports Tab
Print multiple hours of event data by using any of the following methods:
• Select the Event List Report button from the Patient Reports tab, select a time
interval button (2 Hours, 4 Hours, 8 Hours, 12 Hours, 24 Hours), then select the Print
button in the Print Selection dialog box.
• Select the Print More button in the Events tab, select a time interval button (2 Hours, 4
Hours, 8 Hours, 12 Hours, 24 Hours), then select the Print button in the Print Selection
dialog box.
NOTE: Requesting this report posts a print job in the system Print
Status tab.
The Print Selection Dialog Box
Use the Print Selection dialog box (FIGURE 8-14) to select a print time interval. The report
can be generated for 1, 2, 4, 8, 12 and 24 hour intervals.
NOTE: If a new patient is selected while a dialog box is open, the
dialog box closes.

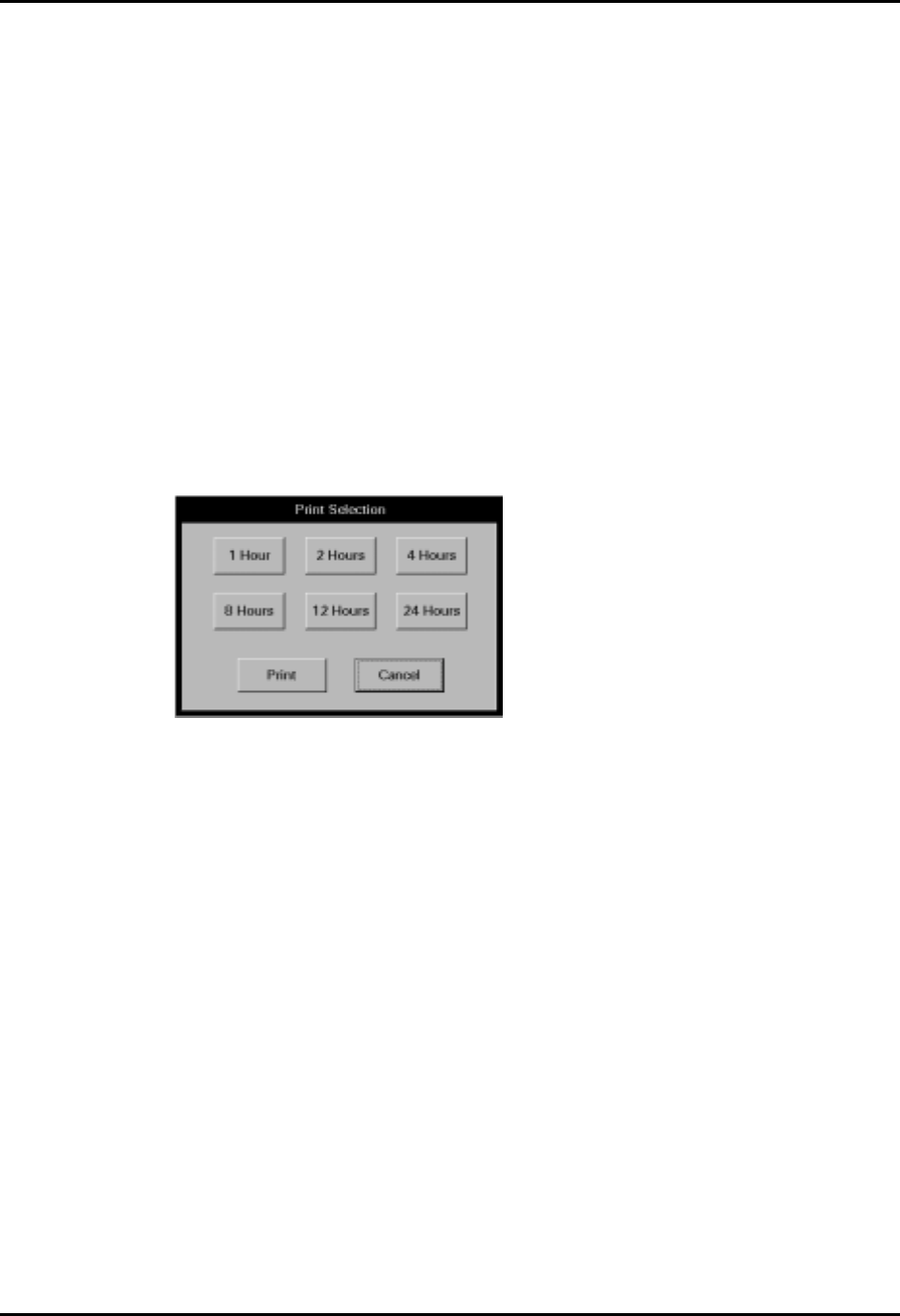

FIGURE 8-14 Print Selection Dialog Box
Printing an Event List Report from the Print Selection Dialog Box
1. Select a time interval button.
NOTE: If the number of hours selected exceeds the amount of data
in system, the report shows only the available data.
2. Select the Print or Cancel button.
• Select the Print button to generate the report and close the report dialog box.
• Select the Cancel button to close the dialog box without generating the print request.
