User's Manual

Patient Reports Tab Report Functions
8 - 18 0070-00-0575-50 Panorama™ Operating Instructions
8.1.5.3 Footer
The Trend List Report contains a footer at the bottom of every page. The footer includes the
following:
• The date and time of the print request. The format displayed is taken from the System
Date/Time tab.
• A centered page number.
• The name of the Panorama Central Station where the report was generated.
8.1.5.4 Printing a Trend List Report
This Trend List Report is printed in portrait orientation, using any of the following methods:
Print one hour of trend data by using any of the following methods:
• Select the Trend List Report button in the Patient Reports tab, select the 1 Hour
button, then select the Print button in the Print Selection dialog box.
• Select the Print Current button in the Trends tab.
Print multiple hours of trend data by using any of the following methods:
• Select the Trend List Report button in the Patient Reports tab, select a time interval
button (2 Hours, 4 Hours, 8 Hours, 12 Hours, 24 Hours), then select the Print button in
the Print Selection dialog box.
• Select the Print More button in the Trends tab, select a time interval button (2 Hours, 4
Hours, 8 Hours, 12 Hours, 24 Hours), then select the Print button in the Print Selection
dialog box.
NOTE: Requesting this report posts a print job in the system Print
Status tab.
The Print Selection Dialog Box
Use the Print Selection dialog box (FIGURE 8-11) to select a print time interval. The report
can be generated for 1, 2, 4, 8, 12 and 24 hour intervals.
NOTE: If a new patient is selected while a dialog box is open, the
dialog box closes.

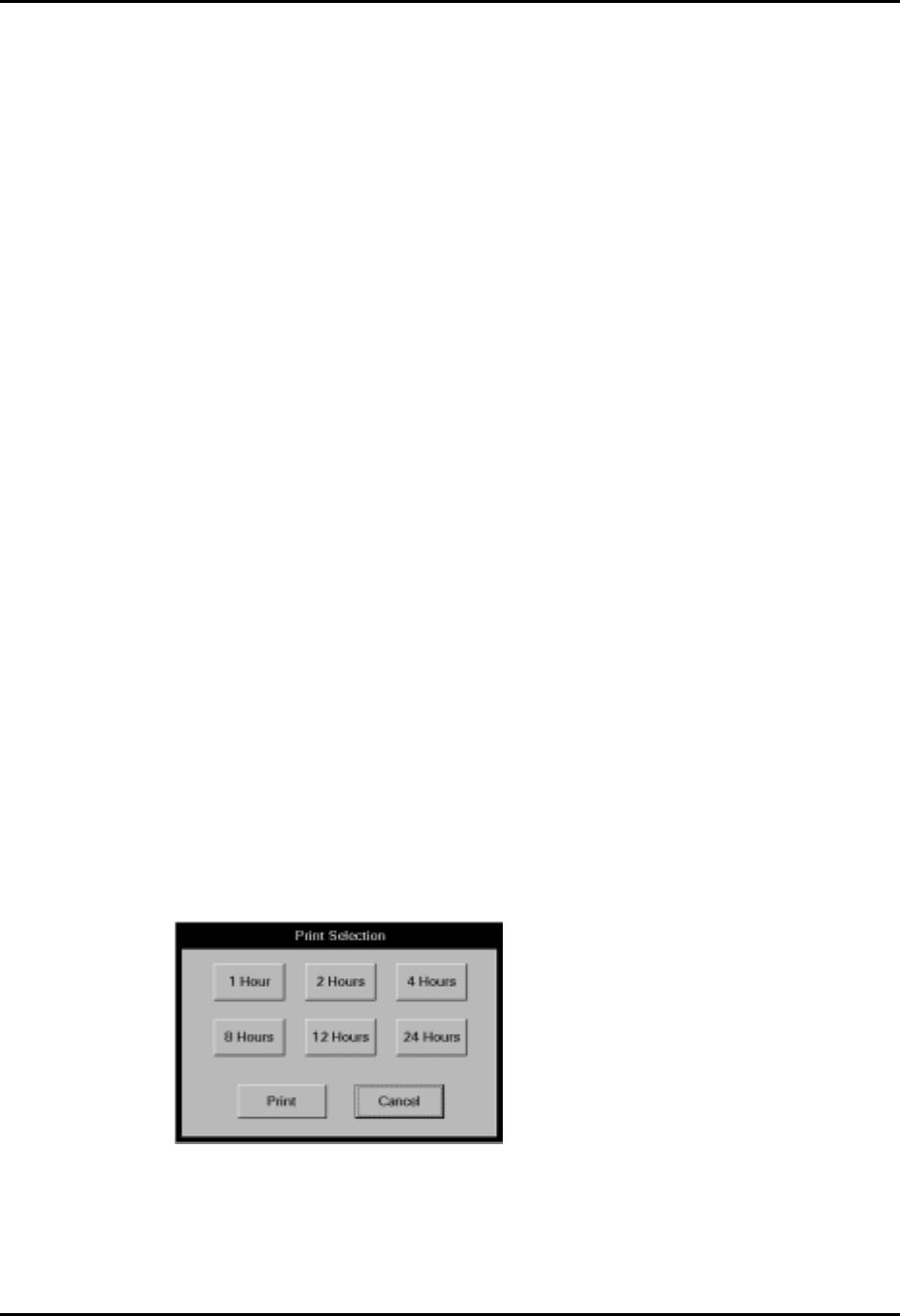

FIGURE 8-11 Print Selection Dialog Box
