User's Manual

ST Tab Views
7 - 34 0070-00-0575-50 Panorama™ Operating Instructions
• When utilizing a 3-wire lead set, the ST tab may contain an ST template for the lead that
is currently being monitored.
• When utilizing a 5-wire lead set and a bedside monitor, the ST tab may contain up to
three ST templates. The ST templates that are displayed will be based on the three ST
ECG waveforms that are being sent from the bedside monitor.
• When utilizing a 12 lead cable, the ST tab may contain up to twelve ST templates.
7.5.3.1 Reference ST
• The reference ST template displays in white
• The digital data for the reference ST displays at the bottom of the ST template area
• The reference ST template displays dashes (--) when ST is relearning, when there is no
data available, or when the data is invalid
7.5.3.2 Current ST
• The current ST template will be shown in yellow
• The digital data for the current ST will be shown at the bottom of the ST template area
• The current ST template will show dashes (--) when ST is relearning, when there is no data
available, and when the data is invalid
NOTE: ST templates and digital data will not be shown in the ST
template areas during an ST learn phase.
7.5.4 Config ST Sidebar Button
The Config ST sidebar button is used to configure the ST templates in the ST tab.
•If Bedside Alarm Tracking is enabled, the Config ST adjustments made at the
Panorama Central Station will automatically update the bedside monitor ST settings.
•If Bedside Alarm Tracking is enabled, the Config ST adjustments made at the
bedside monitor will automatically update the Panorama Central Station ST settings.

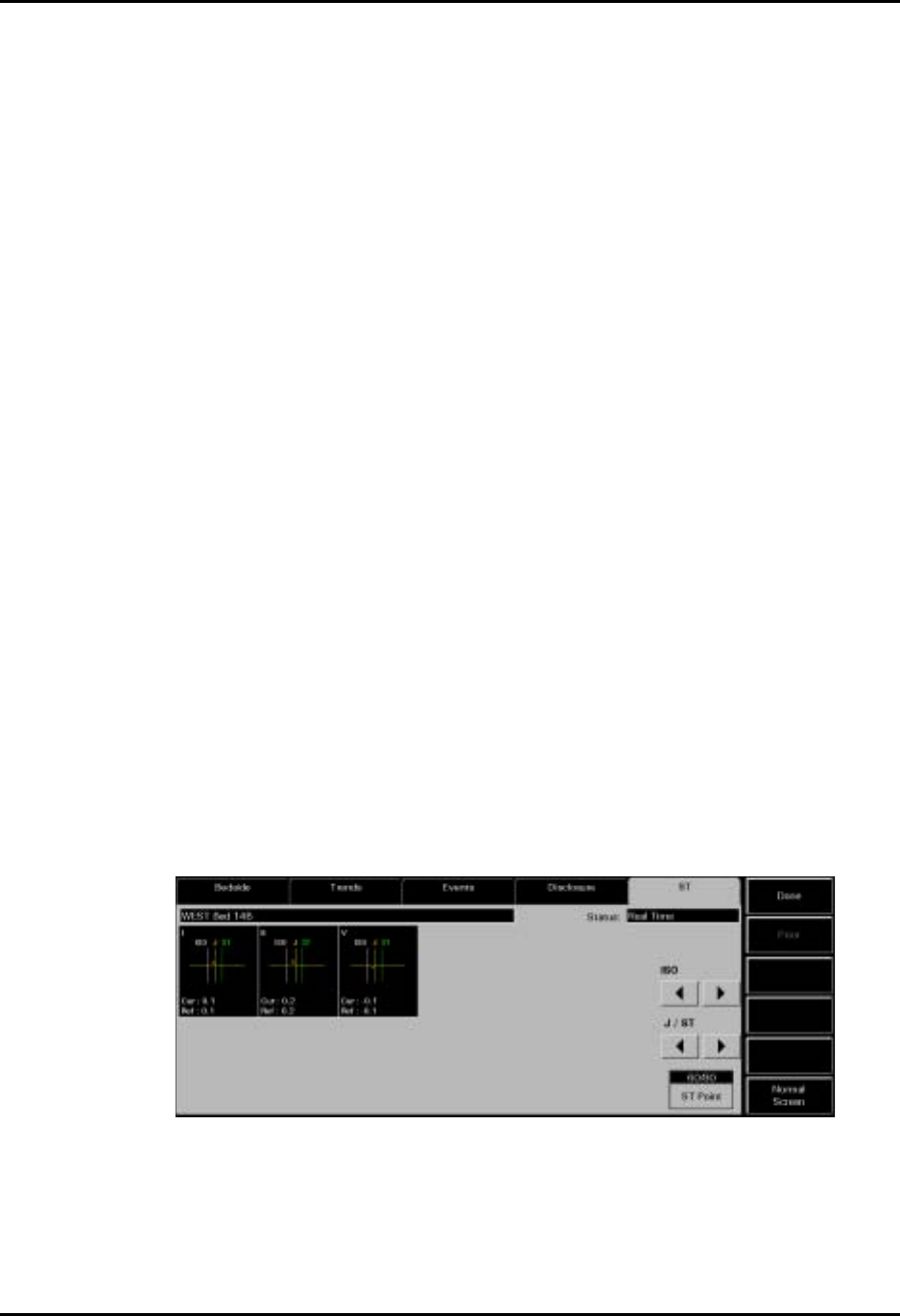

Selecting the Config ST sidebar button will display the controls (FIGURE 7-16) that are used
for configuring the ST templates.
FIGURE 7-16 Configuring ST in the ST tab (5-wire Lead Set)
