2. Use the dial controls to select the time and date to be displayed. Ensure that the selected
time and date are within the timeframe of the database.
• Select the Cancel button to return to the Disclosure tab.
• Select the Done button to return to the Disclosure tab with the selected date
displayed in the date area, and the selected time displayed in the upper left corner of
the waveform area.
7.4.10 Print More Sidebar Button
The Print More sidebar button provides a printout of a specified time interval from the Full
Disclosure Report. When a print request for a Full Disclosure Report has a specified time
interval that is greater than the current amount of data in the database, the extra time on the
report is filled with blank space.
1. Select the Print More sidebar button. The Print Selection dialog box (FIGURE 7-14)
is displayed.

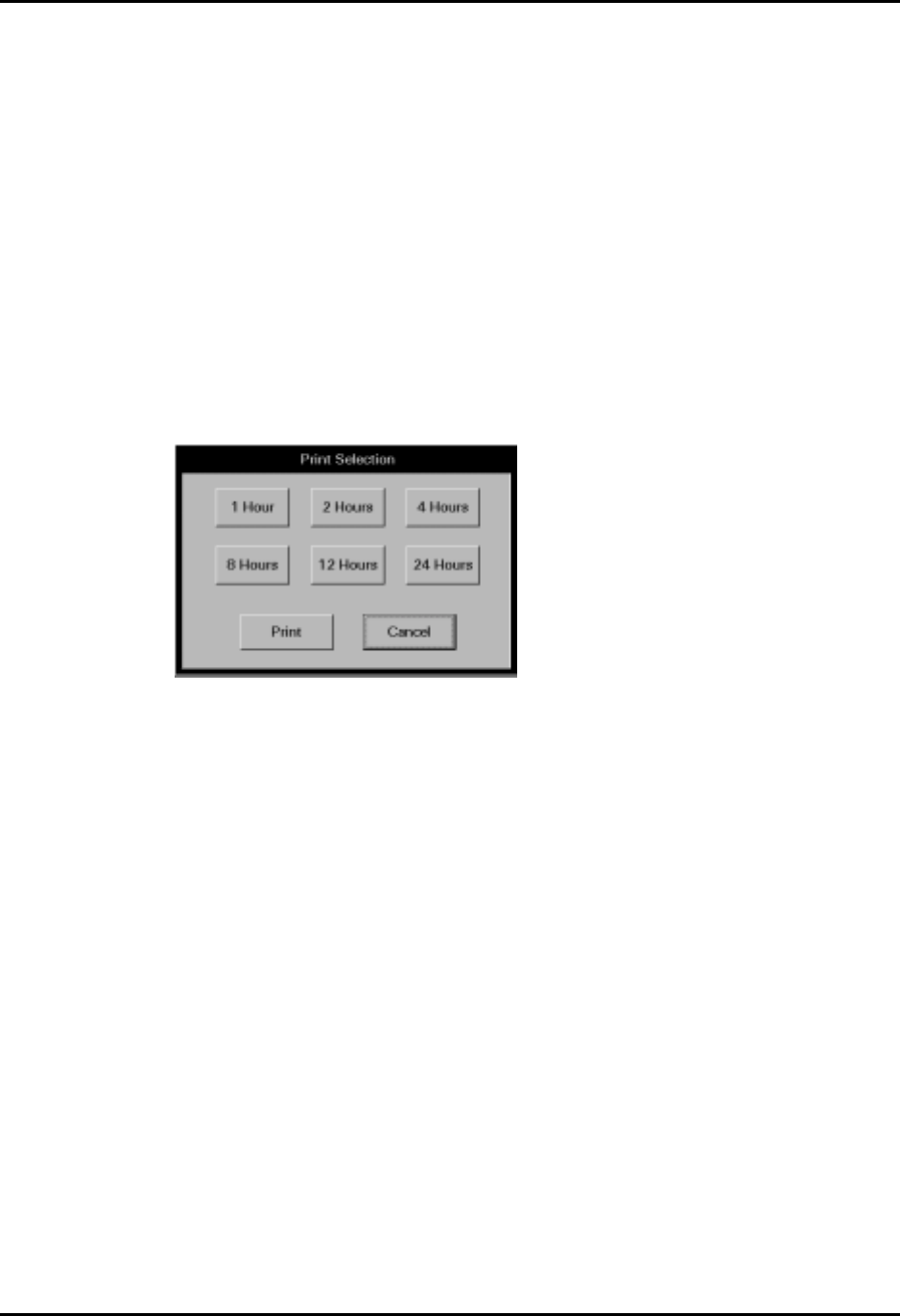

FIGURE 7-14 Print Selection Dialog Box
2. Select the button for the desired time interval to be printed.
3. Select the Print button to initiate the print request to the default printer. The printout will
span the selected number of hours of disclosure data starting from the time of the next to
last row of data that is currently displaying in the waveform area.
Select the Cancel button at any time to close the Print Selection dialog box and return to
the Disclosure tab.
7.4.11 Print Hour Sidebar Button
The Print Hour sidebar button sends a print request for a 1-hour Full Disclosure Report to
the default printer. The first row of waveforms on the report starts 10 minutes prior to the time
of the next to last row of disclosure data that is currently displaying in the waveform area.
The printout is the “Full Disclosure Report” that is described on page 8-7.
7.4.12 Normal Screen Sidebar Button
Select the Normal Screen sidebar button to return the display to the full screen mode, close
all tabs, message boxes and dialog boxes.
