Views Disclosure Tab
7.4.8 Display Choices Sidebar Button
The Display Choices sidebar button is used to select the waveform that will be displayed in
the Zoomed Out view of the Disclosure tab. The Display Choices dialog box
(FIGURE 7-12) displays the choices that are available based on the monitoring device, ECG
lead set and utilized sensors. Any previously used monitoring device, ECG lead set or
sensors are displayed, even if they are not currently in use.
1. Select the Display Choices sidebar button. The Display Choices dialog box is
displayed.

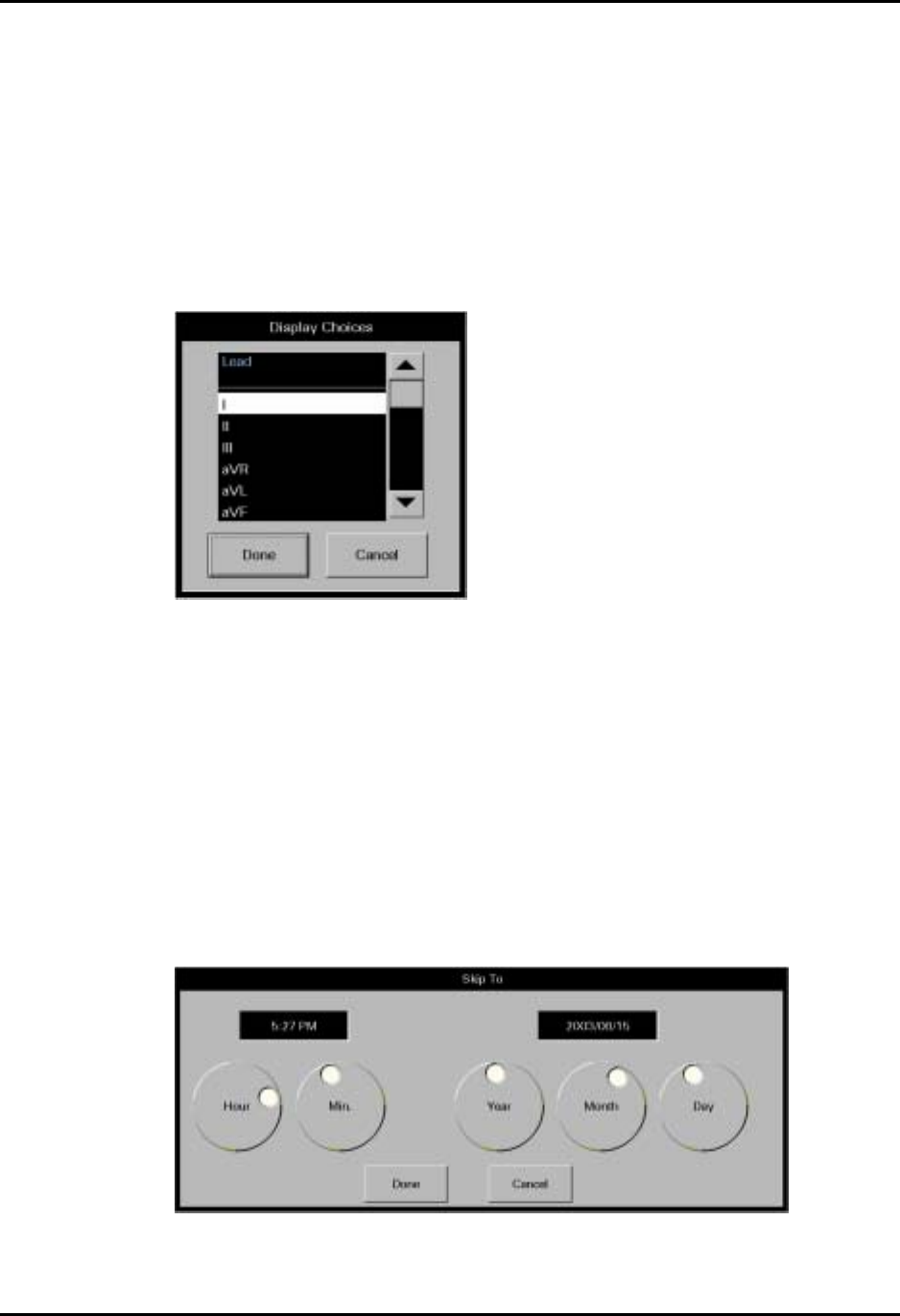

FIGURE 7-12 Display Choices Dialog Box
2. Select the desired waveform to be displayed from the Display Choices dialog box.
• Select the Cancel to return to the Disclosure tab.
• Select the Done button return to the Disclosure tab and view the selected waveform.
7.4.9 Skip To Sidebar Button
The Skip To sidebar button is used to choose a different time period for the waveform area
from the selected patient’s disclosure database. The date and time are displayed in the
system Date/Time formats described in the ‘‘Date/Time Tab’’ on page 9-27.
1. Select the Skip To sidebar button. The Skip To dialog box (FIGURE 7-13) will be
displayed.
FIGURE 7-13 Skip To Dialog Box
