User's Manual

Trends Tab Views
7 - 10 0070-00-0575-50 Panorama™ Operating Instructions

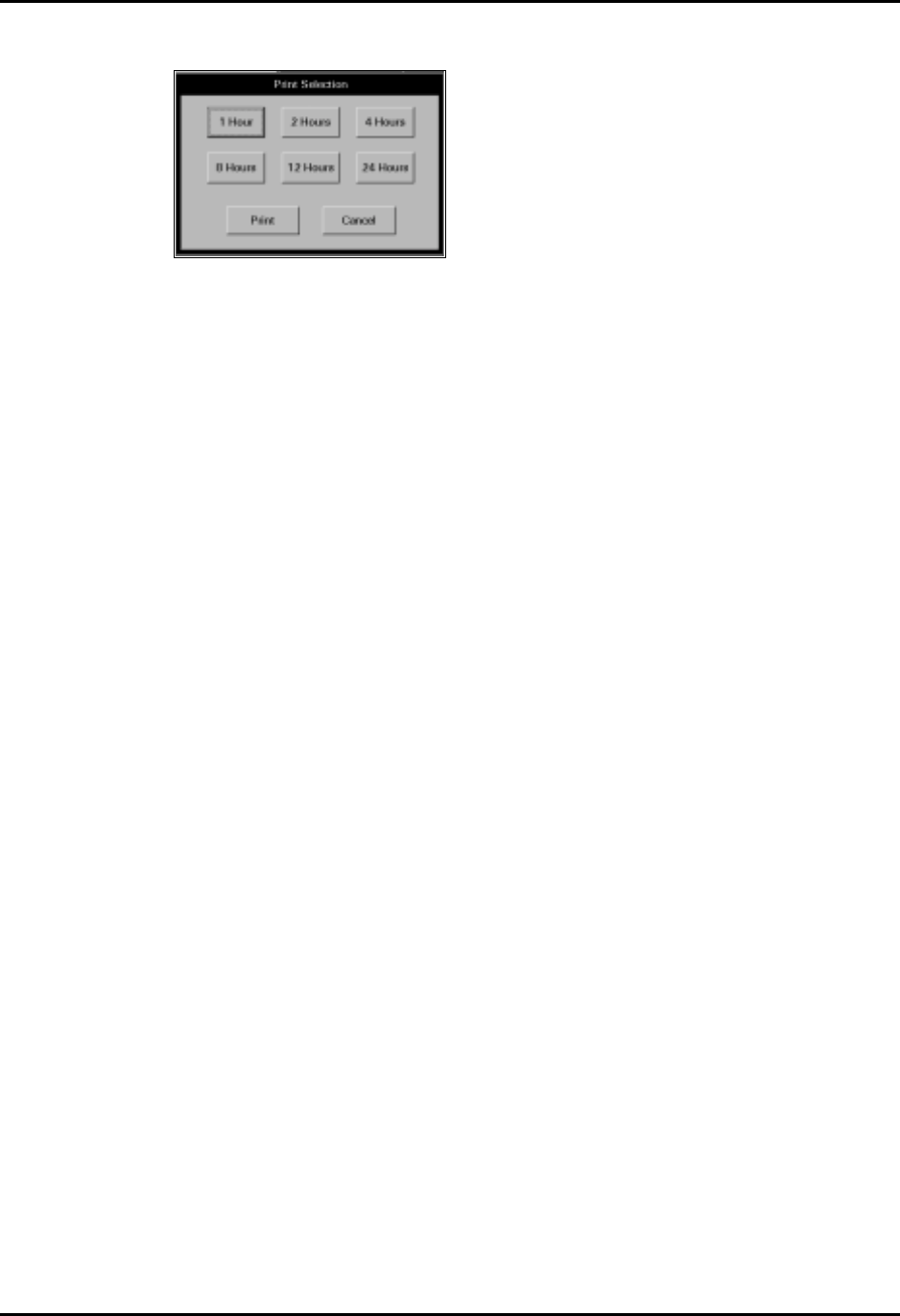

FIGURE 7-4 Print Selection Dialog Box
2. Select the button for the desired time interval to be printed.
3. Select the Print button to send the print request to the default printer. The printout will
span the selected number of hours of trend data starting from the time of the first
viewable row at the top of the list.
Selecting the Cancel button at any time will close the Print Selection dialog box and
return to the List view of the Trends tab.
7.2.3.6 Print Current Sidebar Button
Selecting the Print Current sidebar button sends a print request to the default printer. The
printout is the ‘‘Trend List Report’’ which is discussed on page 8-15.
7.2.3.7 Normal Screen Sidebar Button
Select the Normal Screen sidebar button to return the display to the full screen mode, close
all tabs, message boxes and dialog boxes.
