7.2 Trends Tab
The trended digital data for a patient can be viewed in two formats, either as a list,
(FIGURE 7-3) or graphically (FIGURE 7-5).
Trend data is recorded at user specified intervals, and when an NIBP measurement is
performed. If the Trends tab is selected before the first interval is reached, or before the first
NIBP measurement occurs, the list will be empty. All previously collected parameter data will
be displayed, even if the parameter is not currently being monitored.
The monitoring device, utilized parameters, and configured settings determines the data that
is displayed in the Trends tab. The order in which the parameters are presented is specified
in the “Unit Priorities Tab" on page 9-37.
7.2.1 Accessing the Trends Tab
1. Select the VIEW button on the desired patient tile. The Bedside tab will be displayed.
2. Select the Trends tab. The List view of the Trends tab automatically appears.
7.2.2 Patient Demographic Field
The List and Graphic views of the Trends tab include a demographic field that displays
the last name and bed number of the currently selected patient.
7.2.3 List View of the Trends Tab
The List view of the Trends tab provides a list of all of the trended digital data for the
selected patient. Each trend record is displayed as a row in the list, in descending
chronological order. The most recent trend record appears at the top.

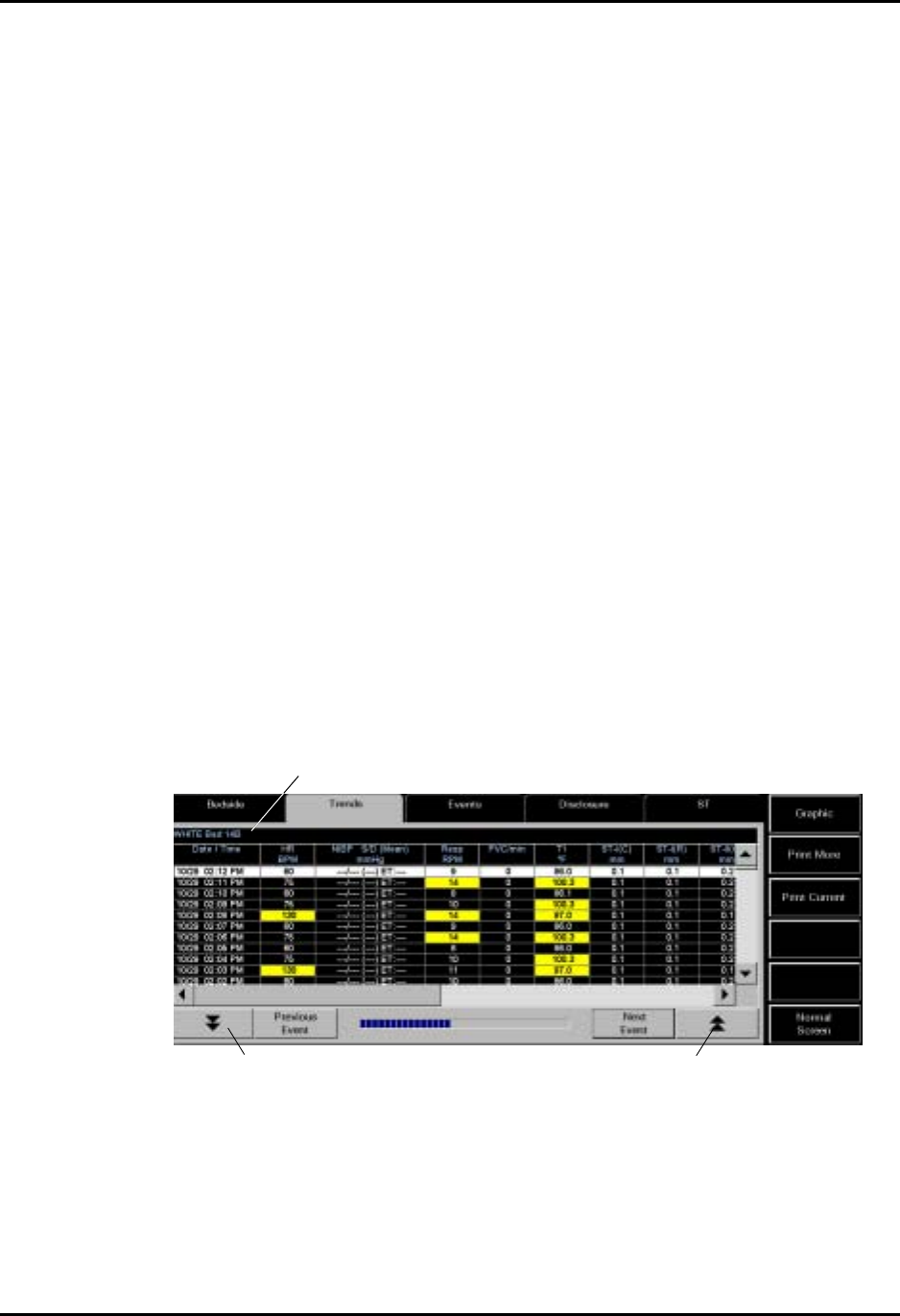

FIGURE 7-3 List view of the Trends tab
When the List view of the Trends tab is selected, the top row in the list is highlighted. As
shown in FIGURE 7-3, the trend record's date and time display in the first column. All
subsequent columns display parameter data in the order that was specified in the Unit
Priorities tab. See ‘‘System Setup Functions’’ on page 9-1 for additional information.
Page Down Page Up
Patient Demographic Line
