Views Bedside Tab
7.1.1 Accessing the Bedside Tab
To display the Bedside tab, select the VIEW button located on the desired patient tile. To
view a different patient, select another patient tile by choosing its digital data or waveform
area.

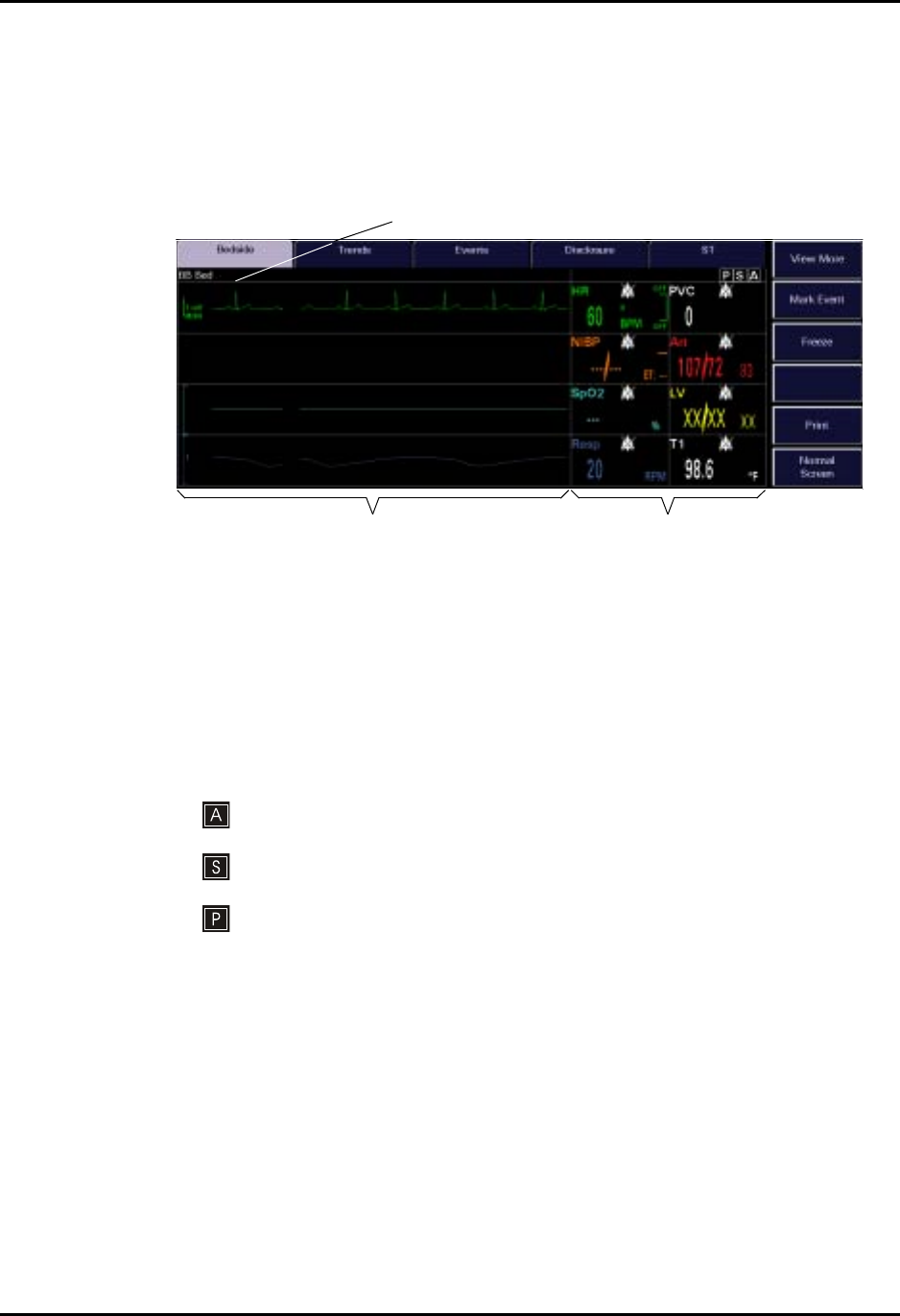

FIGURE 7-1 Bedside tab
7.1.2 Components of the Bedside Tab
Patient Demographic Field
The Bedside tab includes a demographic field that displays the last name and bed number
for the selected patient.
If applicable, the following icons display on the right side of the Patient Demographic Field:
• Indicates that Arrhythmia Detection is enabled.
•
Indicates that ST Analysis is enabled.
• Indicates that Pacer Enhancement is enabled.
Waveform Area
The waveform area of the Bedside tab displays a maximum of four waveforms that
correspond to the digital parameters which occupy the tiles directly to the right. Wave gain
data for each waveform parameter is displayed on the left side of each waveform tile. If a
digital parameter or a waveform is not fully visible on the display, use the View More
sidebar button to scroll the parameter/waveform into a viewable tile position.
Patient Demographic Field
Waveform Area Digital Data Area
Calipers Dialog Box
