Patient Setup Functions Display Tab
Table 5-1 shows the number of sub-tiles that each parameter occupies. For a list of the
parameters listed by monitoring device, refer to ‘‘Supported Devices’’ on page 1-4. For
additional information regarding the setup of a patient tile, refer to the ‘‘Display Tab’’ on
page 5-29.
.
NOTE: Digital Data is shown in the color configured for the
parameter. Refer to the ‘‘Parameter Color Tab’’ on page 9-4
for additional information.
Heart Rate Tile
The Heart Rate tile shows the heart rate measurement, the lead through which the
measurement is acquired and icons for Arrhythmia/ST analysis.

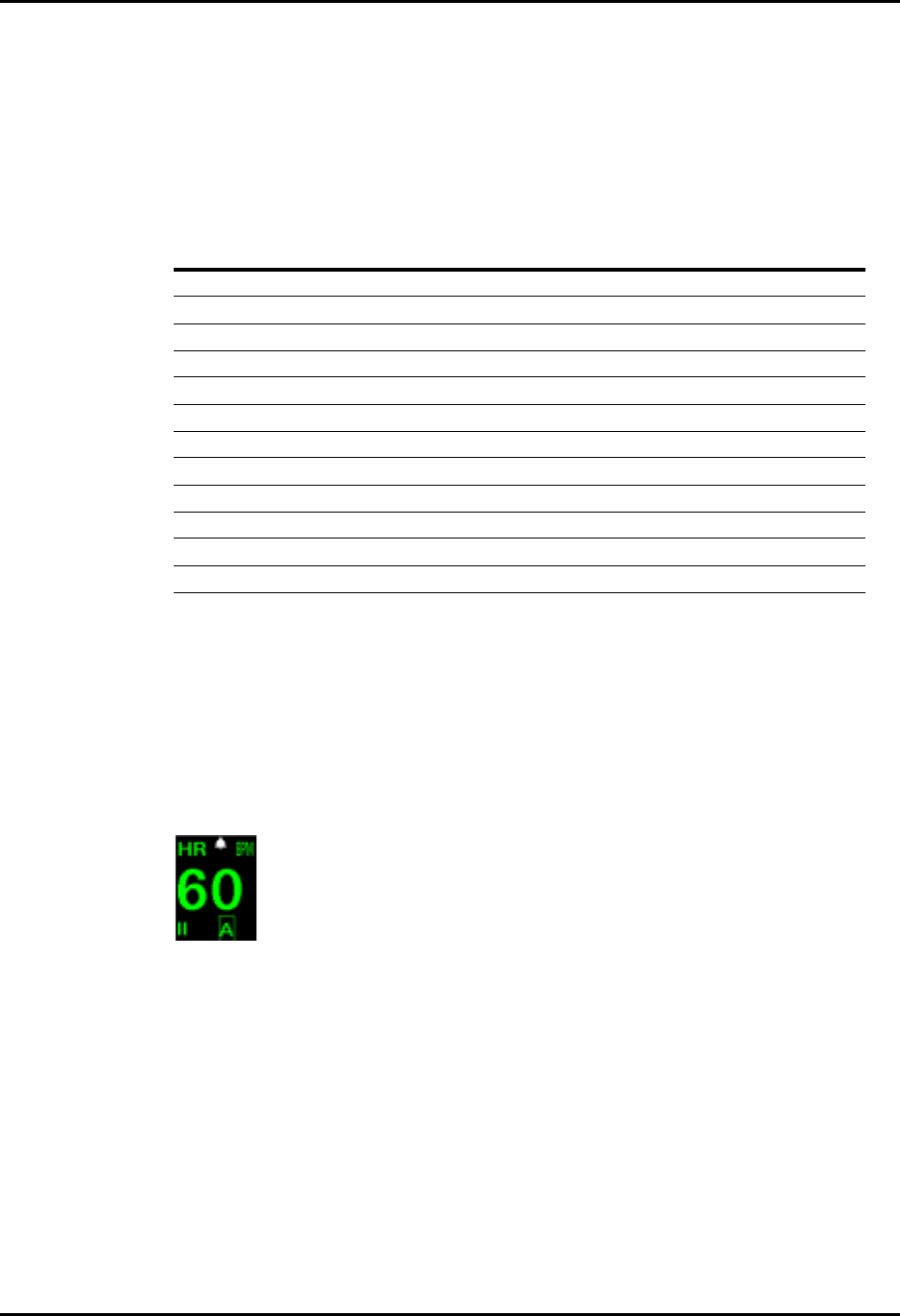

FIGURE 5-20 shows an example of the Heart Rate digital data tile.
FIGURE 5-20 Heart Rate Digital Data Tile
The Heart Rate tile follows additional digital data rules.
For example, the Heart Rate tile:
TABLE 5-1 Number of Sub-tiles Occupied by a Parameter
PARAMETERS # OF SUB-TILES OCCUPIED
Heart Rate 2
NIBP 2
Respiration 1
SPO2 1
IBP 2
Temperature 1
CO
2
2
O
2
2
N
2
O2
Agents 2
PVC 1
ST 1
