User's Manual

Panorama™ Operating Instructions 0070-00-0575-50 5 - 29

Patient Setup Functions Display Tab

5.4 Display Tab

The Display tab is used to select the digital and waveform parameters that will appear in the

selected patient tile. The default settings for patient tiles are defined by the ‘‘Unit Choices

Tab’’ on page 9-39. The layout and functionality of the Display tab changes based on the

type of monitoring device assigned to the selected patient tile. The fields discussed in this

section may not apply to all users.

This section includes the following:

• Accessing the Display Tab

• Entering Data in the Display Tab

• Components of the Display Tab

• Sidebar Buttons

• Troubleshooting

5.4.1 Accessing the Display Tab

1. From the menu bar, select the Patient Setup menu button. The tabs associated with

patient setup are displayed.

2. Select the Display tab (FIGURE 5-17). The Display tab is shown.

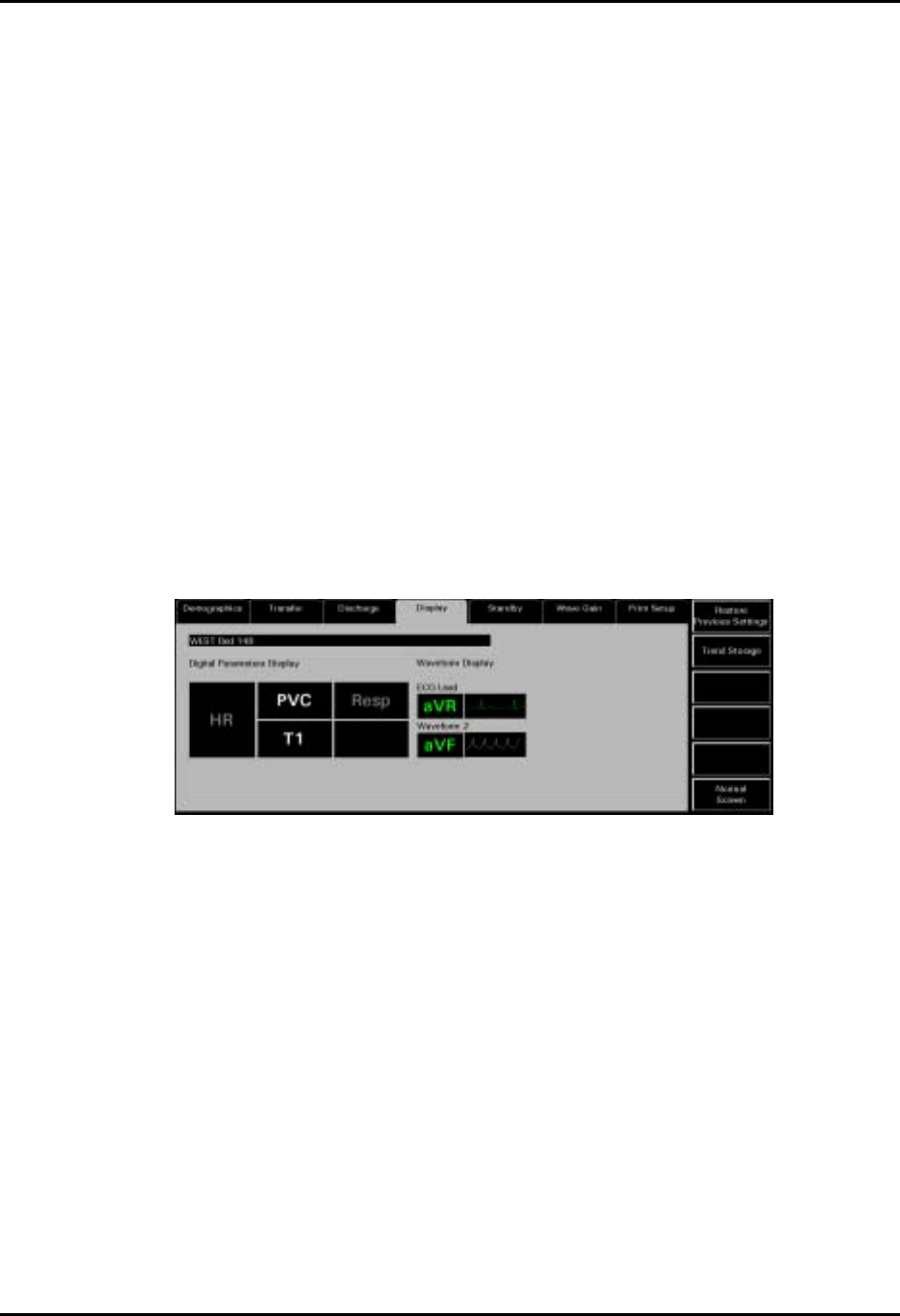

FIGURE 5-17 Display Tab

NOTE: The Parameter list box is not shown on the Display tab until

a parameter tile is selected.

5.4.2 Entering Data in the Display Tab

This section outlines entering and modifying data on the Display tab.

Selecting a Patient’s Parameter Data

1. Choose a patient tile by selecting its digital data or waveform area.

2. Select the parameter tile to be modified. The Parameter list displays.

3. Select the parameter to be viewed in the selected tile or turn the tile OFF.

• Digital Parameters include Heart Rate, Respiration, IBP, NIBP, Temp, ST, PVC, SpO

, O

and Agents

• Waveform Parameters include I, II, III, aVR, aVL, aVF, V, V1, V2, V3, V4 and V5.
