User's Manual

Panorama™ Operating Instructions 0070-00-0575-50 5 - 27
Patient Setup Functions Discharge Tab
5.3 Discharge Tab
The Discharge tab is used to discharge a patient from a patient tile. If the required
demographic information was previously entered for the patient to be discharged, the patient
will be moved to the list of retrievable patients. For additional information on retrieving a
patient see ‘‘Retrieve Discharged Pt.’’ on page 5-11.
This section includes the following:
• Accessing the Discharge Tab
• Discharging a Patient
• Sidebar Button
• Troubleshooting
5.3.1 Accessing the Discharge Tab
1. From the menu bar, select the Patient Setup menu button. The tabs associated with
patient setup display.
2. Select the Discharge tab (FIGURE 5-16). The Discharge tab is displayed.

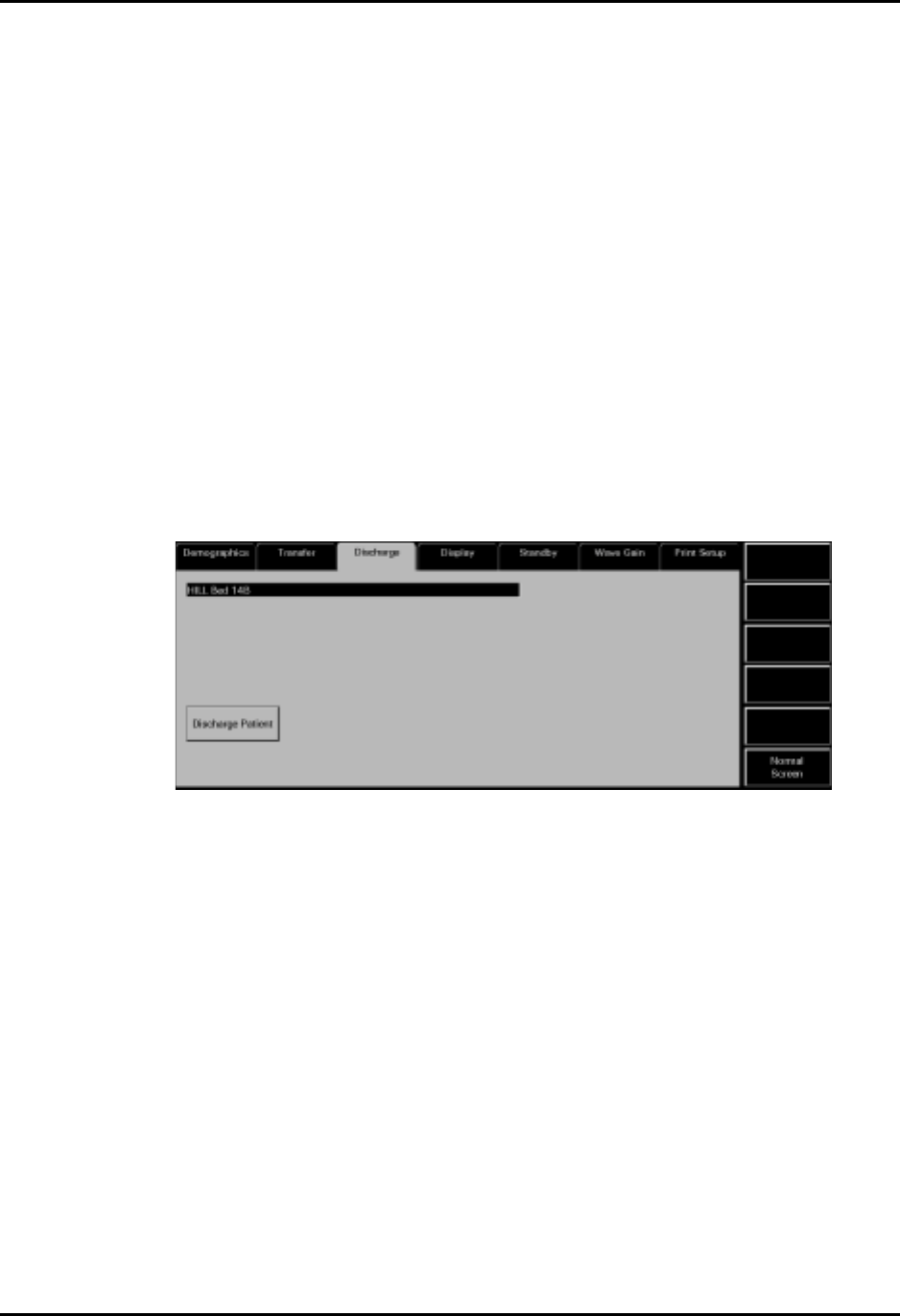

FIGURE 5-16 Discharge Tab
5.3.2 Discharging a Patient
1. Select the tile of the patient to be discharged. Choose a patient tile by selecting its
digital data or waveform area.
2. Select the Discharge Patient button. The Are you sure you want to discharge
this patient? dialog box displays.
•The Yes button discharges the selected patient.
•The No button cancels the discharge
NOTE: A patient can only be retrieved if two of the required
demographic fields have been completed prior to the
patient’s discharge. These fields include First Name, Last
Name and Patient ID.
5.3.3 Sidebar Button
The following sidebar button is used to expand the functionality of this tab.
