User's Manual

Transfer Tab Patient Setup Functions
5 - 22 0070-00-0575-50 Panorama™ Operating Instructions
Transfer From Failed List
The Transfer From Failed List sidebar button is used to resume a transfer of patient
information that was collected in the Failed Transfer List when a Central To Central
Transfer Without Device failed. The patient data and settings collected in the Failed
Transfer List at one Panorama Central Station are transferred to a room in an area monitored
by a different Panorama Central Station. Historical patient data is preserved upon successful
completion of the transfer.
The list box in the Transfer Failed Transfer Patients view (FIGURE 5-15) has three
columns labeled First Name, Last Name and ID. The list contains at least two of these three
demographic indicators.
1. Select the Transfer From Failed List sidebar button. The Transfer Failed
Transfer Patients view is displayed.

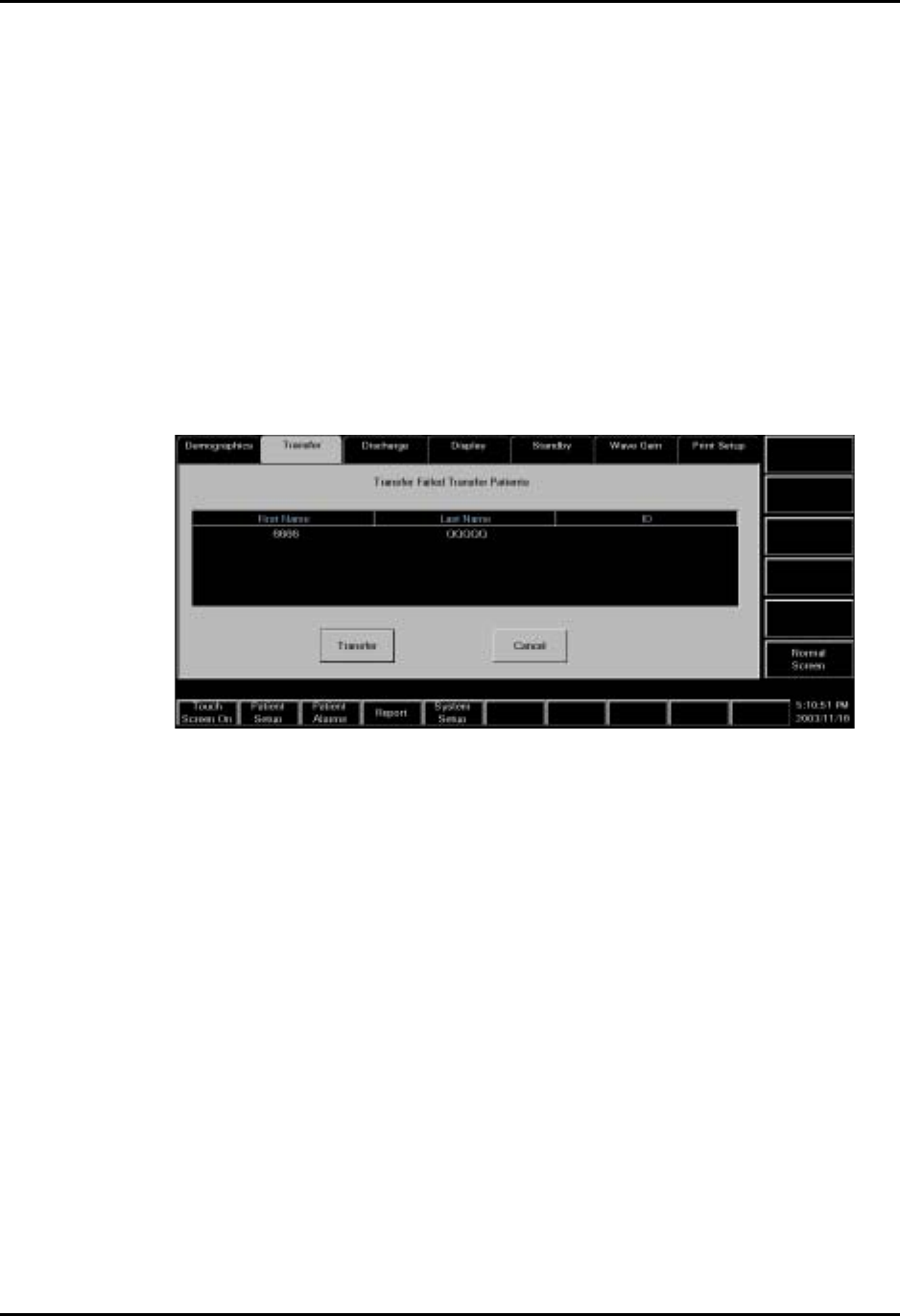

FIGURE 5-15 Transfer Failed Transfer Patients View
2. Select the patient whose information is to be transferred from the list.
•The Transfer button displays the Select Destination Panorama list box (FIGURE 5-11)
displays. Go to step 6 on page 5-17 and continue the transfer process. When a
Destination Panorama is selected, the patient information is removed from the Failed
Transfer List.
•The Cancel button returns to the Transfer tab.
Normal Screen
Select the Normal Screen sidebar button to return the display to the full screen mode, close
all tabs, message boxes and dialog boxes.
