Connecting the Projector
Connecting to a Video Source

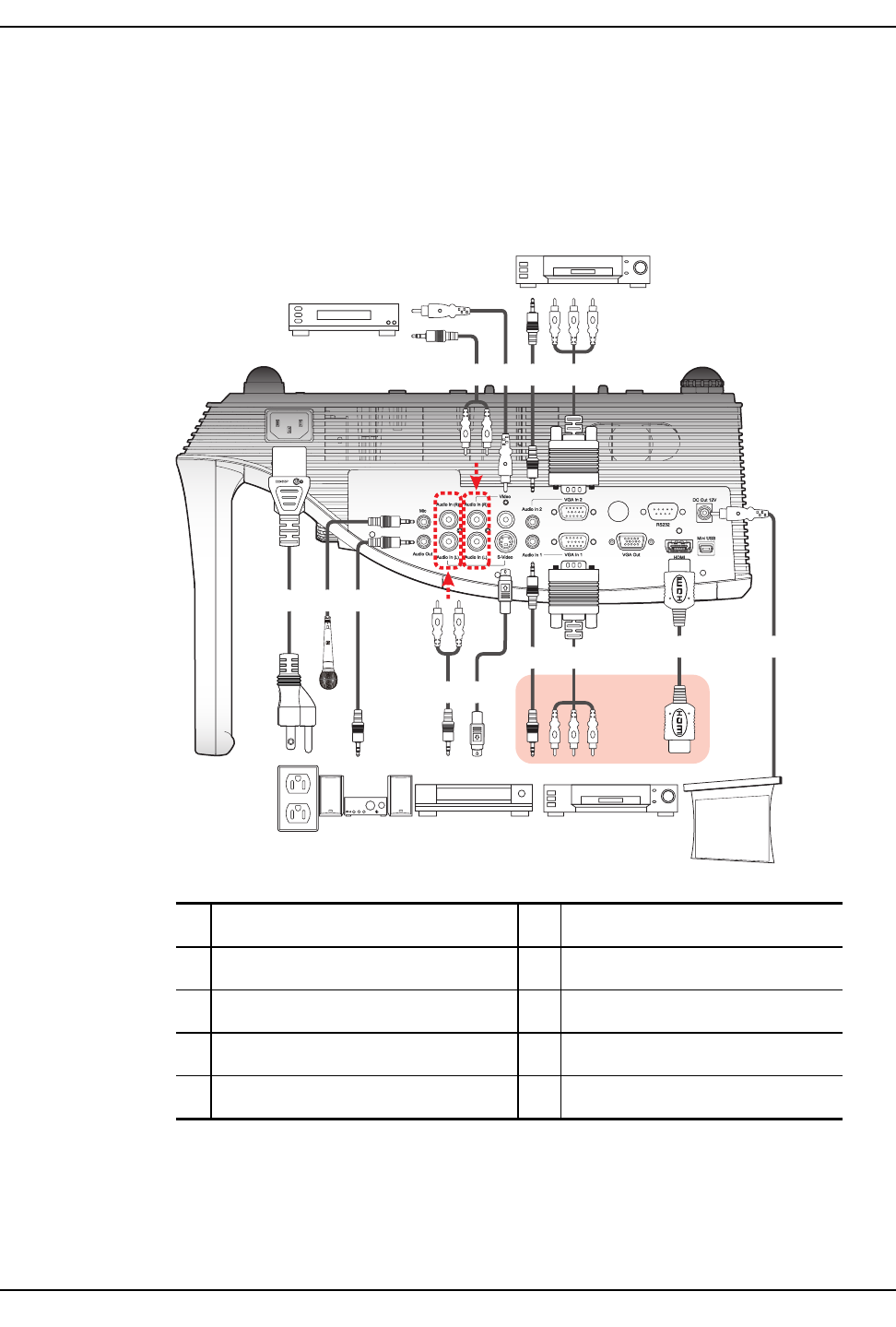

The following figure shows the connection methods available for connecting the
MimioProjector to a video source.
Video output
DVD player, set-top box,
HDTV receiver
Power outlet
Audio output S-Video output
DVD player, set-top box,
HDTV receiver
+12V output
1 2
3
4
5
6
7
8
3 9 5
6
5
1 Power cord (included) 6 VGA to HDTV (RCA) cable
2 Microphone cable 7 HDMI cable
3 Audio cable jack/RCA 8 12V DC jack
4 S-Video cable 9 Composite video cable
5 Audio cable
