-2668 RT & GS

-3268 RT

SELF-PROPELLED SCISSOR LIFTS

www.genieindustries.com

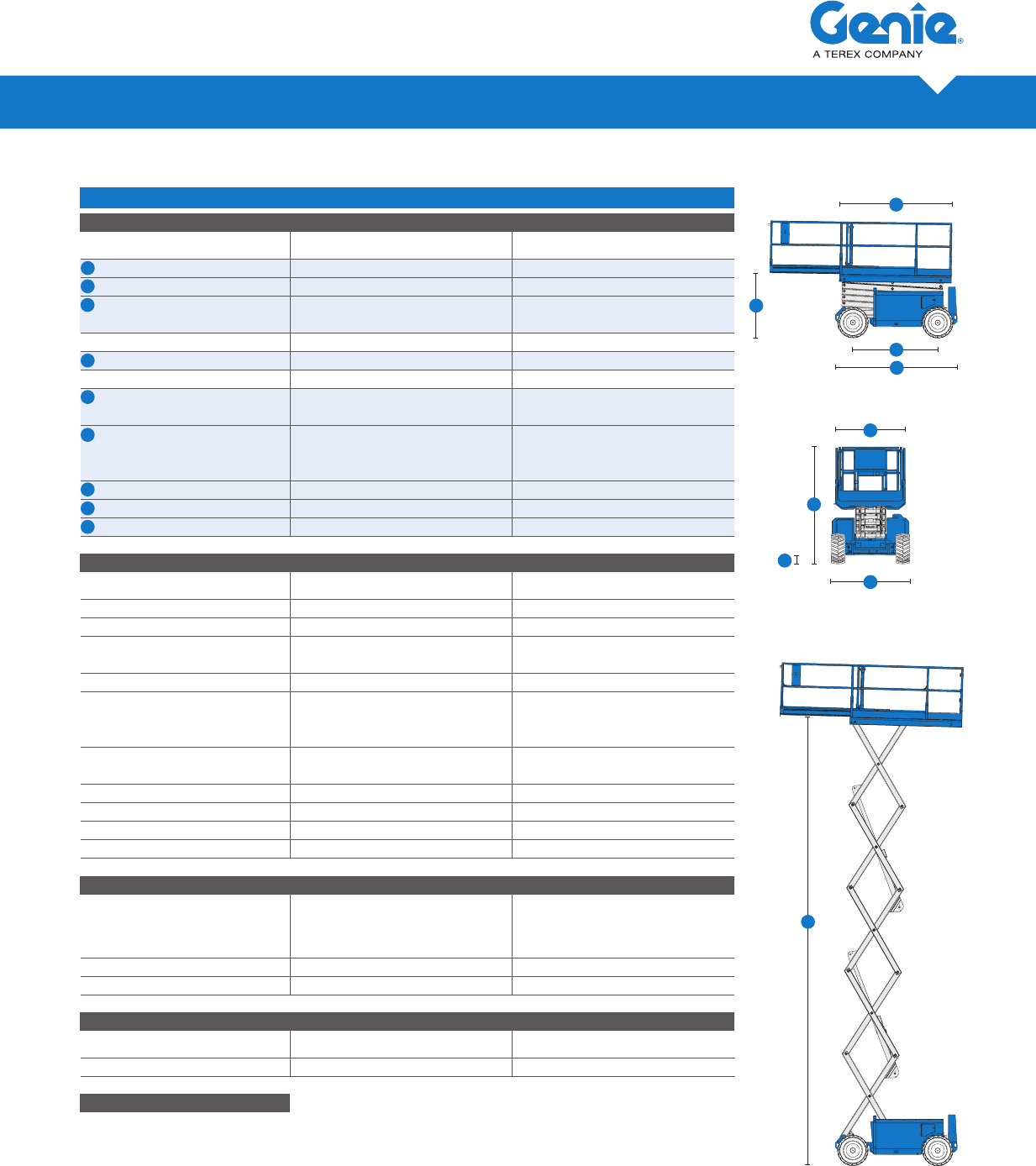

Specifications

* The metric equivalent of working height adds 2 m to platform height. U.S. adds 6 ft to platform height.

** Based on RT tires; deduct 2 in (5.8 cm) for turf and non-marking tires.

*** CE/AUS markets: GS-3268 limited to 2 person platform occupancy when used outdoors.

**** Gradeability applies to driving on slopes. Gradeability may vary depending on the weight of options installed on machine. See operator’s manual for details regarding slope ratings.

***** Weight varies depending on options and country standards.

MODELS GS

-2668 RT GS

-3268 RT

MEASUREMENTS US Metric US Metric

Working height maximum* 32 ft 9.92 m 38 ft 11.75 m

Platform height maximum 26 ft 7.92 m 32 ft 9.75 m

Platform height - stowed 3 ft 10.75 in 1.19 m 4 ft 3.75 in 1.31 m

Platform length - outside 8 ft 3 in 2.51 m 8 ft 3 in 2.51 m

extended 13 ft 3.96 m 13 ft 3.96 m

Slide-out platform extension deck 5 ft 1.52 m 5 ft 1.52 m

Platform width - outside 5 ft 1 in 1.55 m 5 ft 1 in 1.55 m

Toeboard height 6 in .15 m 6 in .15 m

Height - stowed** 7 ft 7.5 in 2.32 m 8 ft 5 in 2.45 m

rails lowered 5 ft 7 in 1.70 m 6 ft 1.83 m

Length - stowed 8 ft 9 in 2.67 m 8 ft 9 in 2.67 m

platform extended 13 ft 9 in 4.19 m 13 ft 9 in 4.19 m

with outriggers 11 ft 3 in 3.38 m 11 ft 3 in 3.38 m

Width 5 ft 8 in 1.73 m 5 ft 8 in 1.73 m

Wheelbase 6 ft 1 in 1.85 m 6 ft 1 in 1.85 m

Ground clearance - center 8 in .20 m 8 in .20 m

PRODUCTIVITY

Maximum platform occupancy*** 4 4 4 4

Lift capacity 1,250 lbs 567 kg 1,000 lbs 454 kg

Extension deck capacity 300 lbs 136 kg 300 lbs 136 kg

Drive speed - stowed 3.8 mph 6.1 km/h 3.8 mph 6.1 km/h

Drive speed - raised 0.5 mph 0.8 km/h 0.5 mph 0.8 km/h

Gradeability - stowed**** 35% 30%

Maximum outrigger leveling:

front to back 6.6° 6.6°

side to side 10.6° 10.6°

Turning radius - inside 5 ft 1.52 m 5 ft 1.52 m

Turning radius - outside 12 ft 1 in 3.68 m 12 ft 1 in 3.68 m

Raise/lower speed 30/35 sec 40/37 sec

Controls proportional proportional

Drive four wheel four wheel

Tires - rough terrain 12 x 23.5 in 30 x 60 cm 12 x 23.5 in 30 x 60 cm

POWER

Power source Kubota DF-752 gas/ LPG 22 hp Kubota DF-752 gas/ LPG 22 hp

Kubota D-1105 Diesel 24.9 hp Kubota D-1105 Diesel 24.9 hp

Perkins 403D-11 Diesel 26 hp Perkins 403D-11 Diesel 26 hp

Fuel tank capacity 15 gal 56.8 L 15 gal 56.8 L

Hydraulic system capacity 16.5 gal 62.5 L 16.5 gal 62.5 L

WEIGHT*****

6,737 lbs 3,056 kg 8,084 lbs 3,667 kg

with outriggers 7,434 lbs 3,372 kg 9,072 lbs 4,115 kg

STANDARDS COMPLIANCE ANSI A92.6, CSA B354.2, CE Compliance, AS 1418.10

Summary of content (2 pages)

PAGE 1
SELF-PROPELLED SCISSOR LIFTS GS -2668 RT & GS -3268 RT TM TM Specifications MODELS MEASUREMENTS Working height maximum* A Platform height maximum B Platform height - stowed C Platform length - outside extended Slide-out platform extension deck D Platform width - outside Toeboard height E Height - stowed** rails lowered F Length - stowed platform extended with outriggers G Width H Wheelbase I Ground clearance - center GSTM-2668 RT GSTM-3268 RT US Metric US Metric 32 ft 26 ft 3 ft 10.
PAGE 2
SELF-PROPELLED SCISSOR LIFTS GS -2668 RT & GS -3268 RT TM TM Features STANDARD FEATURES OPTIONS & ACCESSORIES MEASUREMENTS PRODUCTIVITY GS™-2668RT • 32 ft (9.92 m) working height • Up to 1,250 lb (567 kg) lift capacity • • • • GS™-3268RT • 38 ft (11.75 m) working height • Up to 1,000 lb (454 kg) lift capacity PRODUCTIVITY •9 9 x 61 in (2.51 x 1.55 m) steel frame platform with replaceable aluminum deck • 60 in (1.
