User Guide

11
FRONT
L
R
IN OUT
REAR
L
R
IN OUT
CENTER
OUT
IN
LFE
OUT
IN
DIGITAL OUT
(Optical)
LD/DVD Player
OUT
IN
DIGITAL I/O
"5.1 READY"
PRO LOGIC
RECEIVER/
PREAMP
5.1 INPUT
DB-25 Connector
DIGITAL IN
(Coaxial)
DIGITAL OUT
(Coaxial)
CD Player
DOLBY
DIGITAL
PROCESSOR
FRONT REAR
L
R
C
S
RF In
RF Out
OUTPUTS
Speakers are hooked up directly
to Receiver. If this were a preamp
there would be outputs to separate
amplifiers with speaker outputs.
POWER
SERIAL #
12 VOLTS DC
SYSTEMDIGITAL I/0LFECENTERREARFRONT
OUT
IN
OUT
IN
OUTL
INR
L
R
IN OUT IN OUT
CONFIGURATION
1 8
1 2 3 4 5 6 7 8
Dip On
DTS Decoding Under License from
DTS Technology LLC
U.S. Patent Number 5,451,942
Designed & Engineered in the USA
INCLINE VILLAGE
NV 89452-8359
US & FOREIGN PATENTS PENDING
Design verified to comply with FCC
Part 15 for a Class B Digital Device
MANUAL MODE

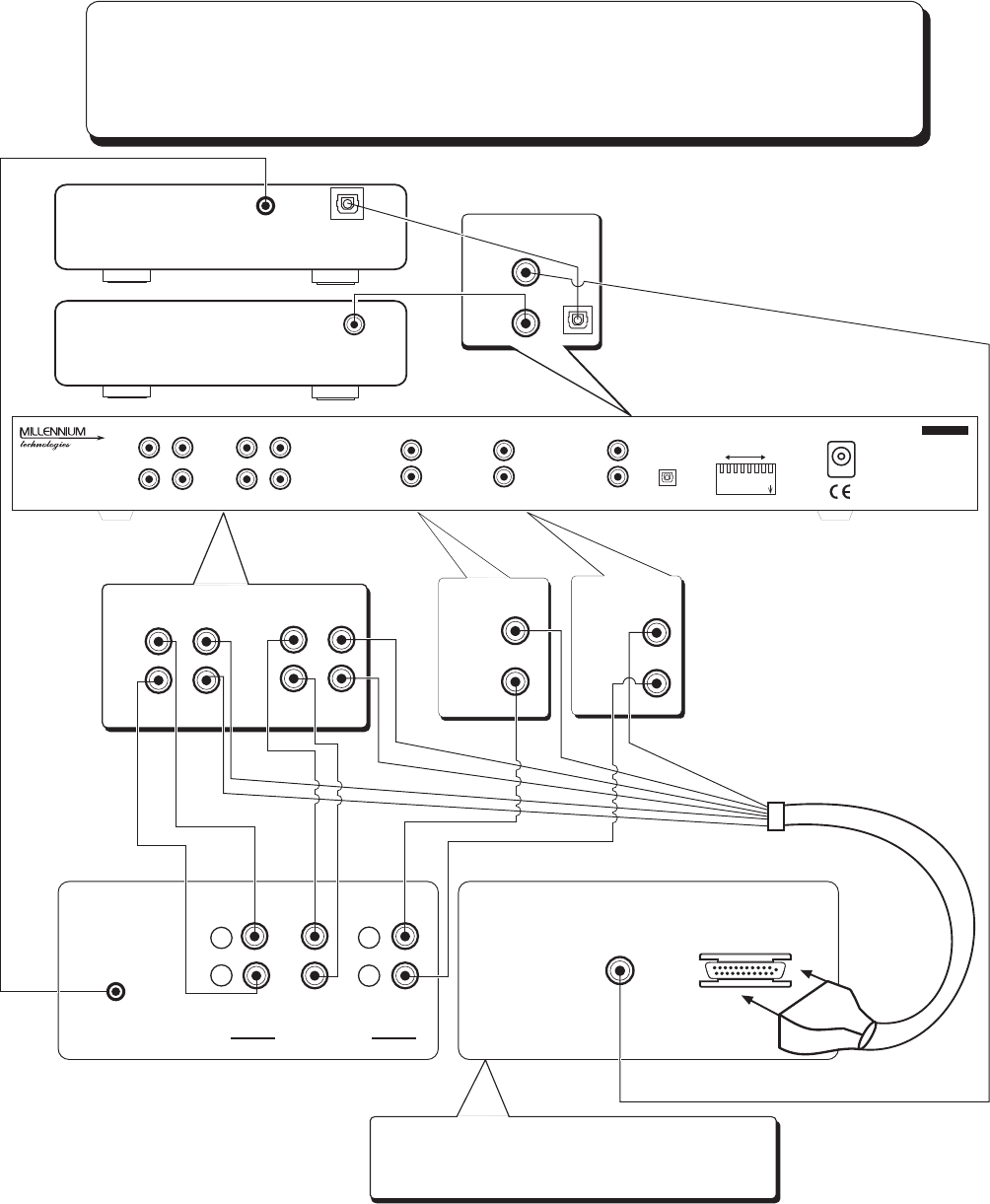

Stand Alone Installation with “5.1 Ready” Receiver or Preamp
In this configuration, the Millennium 2.4.6 is being installed into an existing
system with either a Receiver or Preamp that is "5.1 Ready". A "5.1 Ready"
Receiver or Preamp will provide a special DB-25 connector, which combines
all outputs through one cable. For hook-up to the 2.4.6 you must obtain a cable
with a DB-25 connector on one end and separate RCA connectors for patching
into the 2.4.6 on the other.
