T6963C Graphic Lcd Library
The mikroC PRO for PIC32 provides a library for working with Glcds based on TOSHIBA T6963C controller. The Toshiba
T6963C is a very popular Lcd controller for the use in small graphics modules. It is capable of controlling displays with
a resolution up to 240x128. Because of its low power and small outline it is most suitable for mobile applications such
as PDAs, MP3 players or mobile measurement equipment. Although small, this contoller has a capability of displaying
and merging text and graphics and it manages all the interfacing signals to the displays Row and Column drivers.
For creating a custom set of Glcd images use Glcd Bitmap Editor Tool.
Important:
- When using this library with PIC32 family of MCUs be aware of their voltage incompatibility with certain number of
T6963C based Glcd modules. So, additional external power supply for these modules may be required.
- ChipEnable(CE), FontSelect(FS) and Reverse(MD) have to be set to appropriate levels by the user outside of the
T6963C_Init() function. See the Library Example code at the bottom of this page.
- Glcd size based initialization routines can be found in setup library les located in the Uses folder.
- The user must make sure that used MCU has appropriate ports and pins. If this is not the case the user should adjust
initialization routines.
Some mikroElektronika’s adapter boards have pinout different from T6369C datasheets. Appropriate relations between
these labels are given in the table below:
Adapter Board T6369C datasheet
RS C/D
R/W /RD
E /WR

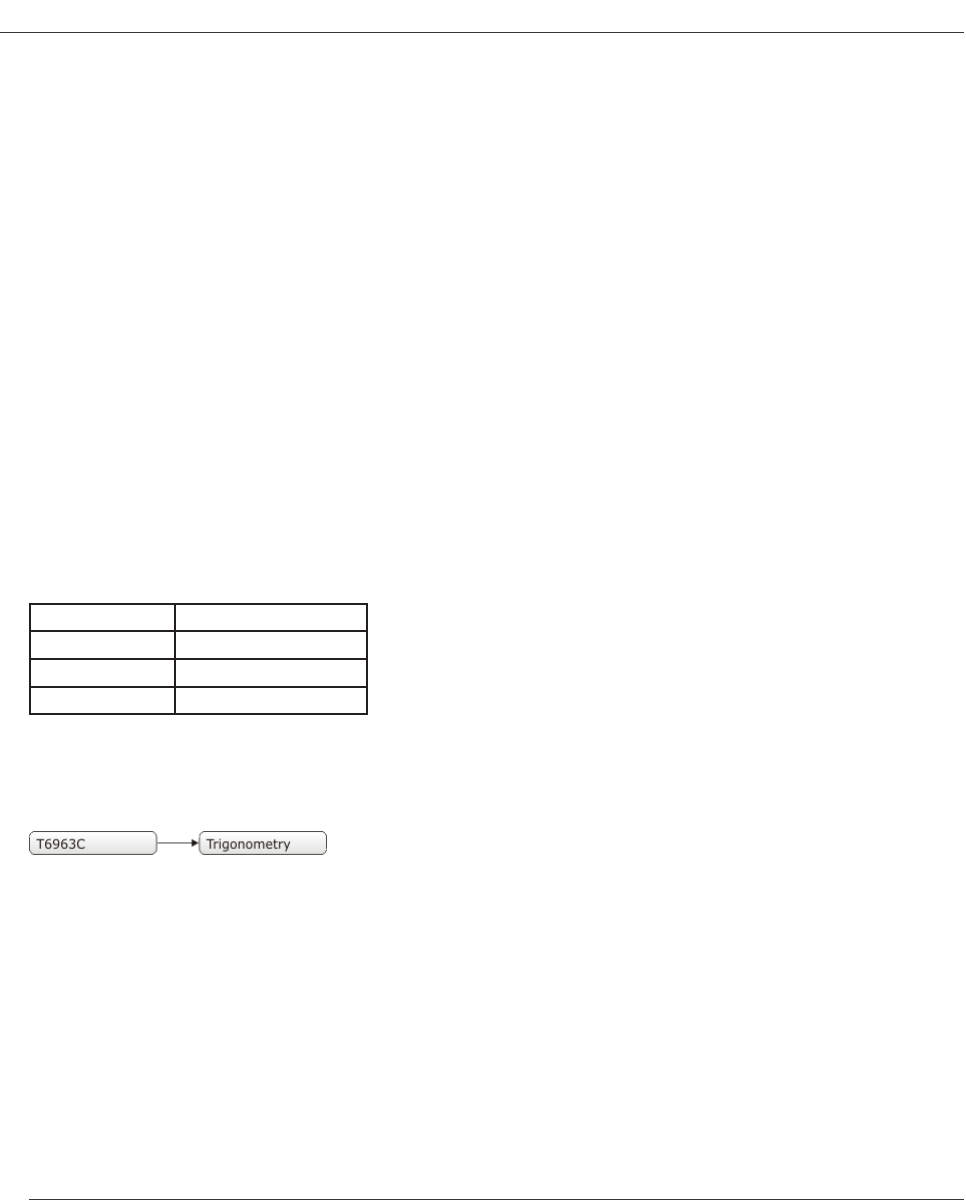

Library Dependency Tree
