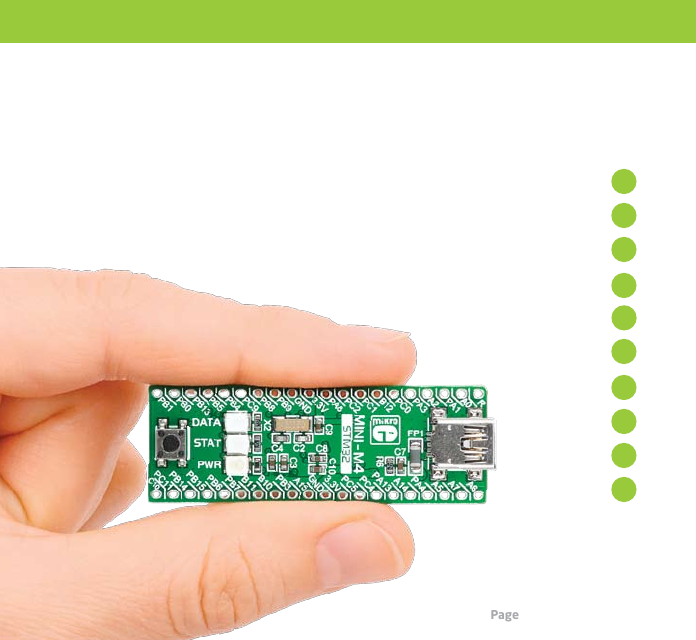

Introduction to MINI-M4 for STM32

Key features

Miniature and powerful development tool designed to

work as stand alone device or as MCU card in DIP40 socket.

MINI-M4 for STM32 is pre programmed with USB HID bootloader

so it is not necessary to have external programmer. If there is

need for external programmers (mikroProg™ or ST-LINK V2)

attach it to MINI-M4 for STM32 via pads marked with PA14

(TCK/SWC), PA13 (TMS/SWD), PA15

(TDI), PB3 (TDO) and

RST#.

Connection Pads

USB MINI-B connector

DATA LED

STAT LED

POWER supply LED

Reset button

Power supply regulator

Microcontroller STM32F415RG

16 MHz Crystal oscillator

32.768kHz Crystal oscillator
