PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE-1

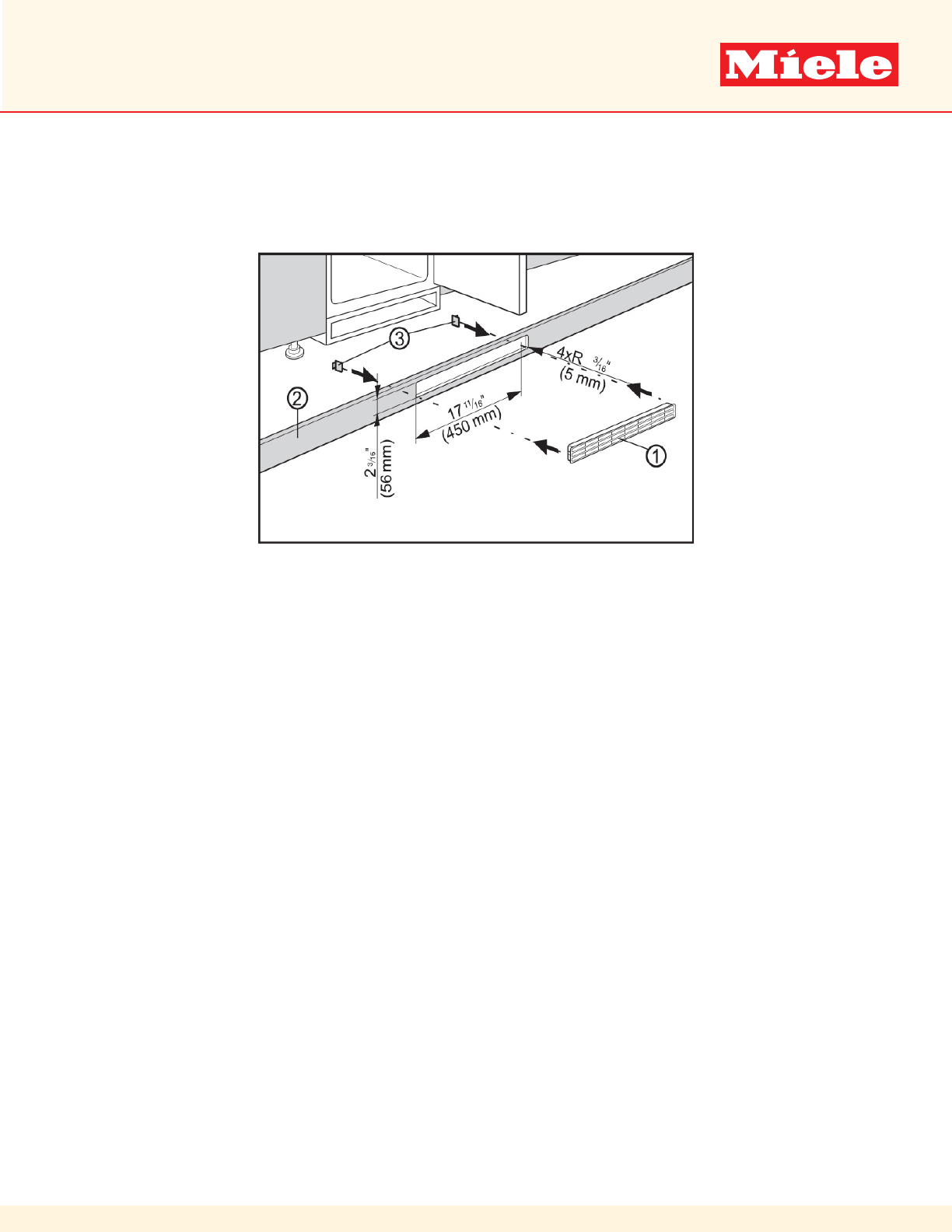

If you would like to use the ventilation slits:
- Cut an opening in the plinth (2) as shown in the gure.
- Place the ventilation grille (1) inot the opening.
- Push the snap connector (3) into the ventilation slits
from the rear until the hooks are touching the plinth
- Reinstall the plinth with the ventilation slits
Specification Sheets TRS 05232017
BOTTOM VENTILATION SLITS
DIMENSIONS
