Installation Instructions
Table Of Contents
- Contents
- Guide to the appliance 4
- Warning and Safety instructions 9
- Caring for the environment 16
- Before using for the first time 17
- Induction 18
- Operation 21
- Tips on saving energy 27
- Safety features 28
- Cleaning and care 30
- Problem solving guide 32
- Optional accessories 34
- Safety instructions for installation 35
- Appliance and building-in dimensions 39
- Preparing the worktop 42
- Installation of several appliances 43
- Fixing the spring clamps and spacer bars 45
- Installing the appliance(s) 47
- General installation tips 48
- Electrical connection 49
- After sales service, data plate 52
a Spring clamps
b Spacer bars
c Gap between spacer bar and worktop
d Sealing strip

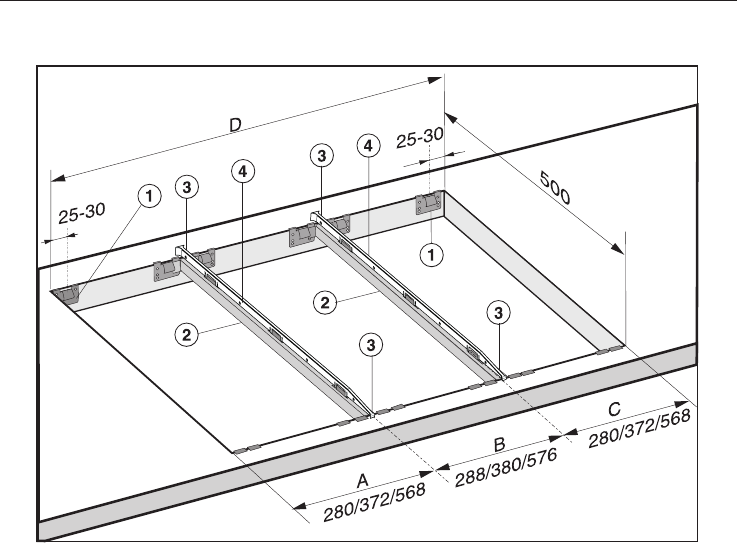

The illustration shows a worktop cut-out with spring clamps a and spacer bars b
for 3 appliances.
An additional spacer bar is required for each additional appliance. The position
for securing each additional spacer bar will depend on the width of appliance B
(288 mm / 380 mm / 576 mm).
Installation of several appliances
44
