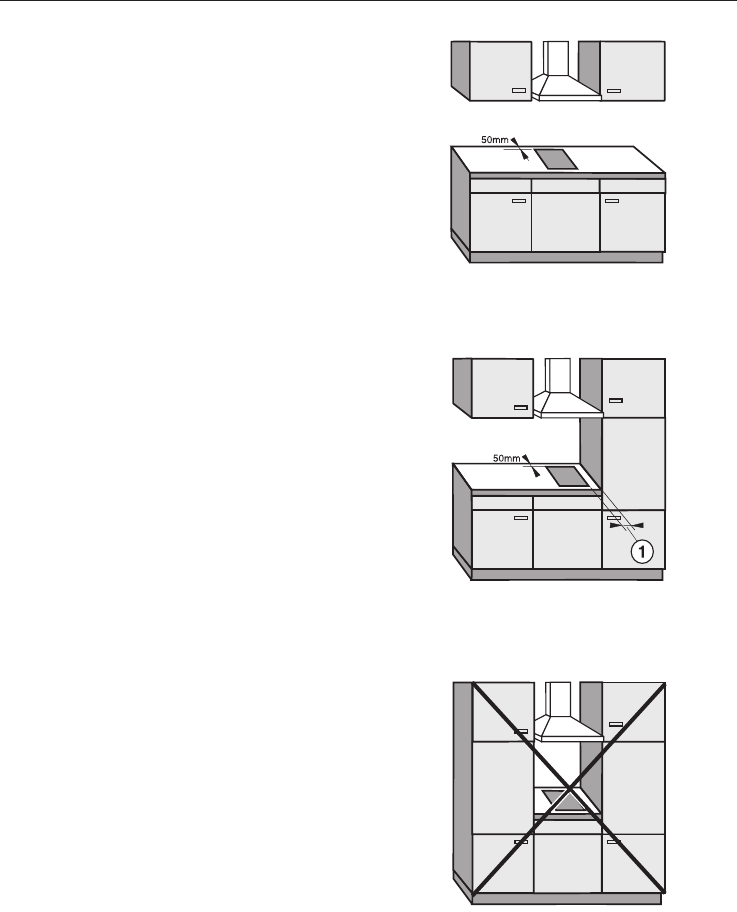

Safety distances to the sides of the
appliance
Ideally the appliance should be
installed with plenty of space on either
side. There may be a wall at the rear
and a tall unit or wall at one side. On
the other side, however, no unit or
divider should stand higher than the
built-in appliance (see illustrations).
Due to the high temperatures radiated
by the appliance, it is essential that a
minimum distance of 50 mm is
maintained between the worktop
cut-out and the back wall.
The minimum distance a between the
worktop cut-out and a wall or tall unit to
the right or left of it is:
40 mm for CS 1212
CS 1221
CS 1234 / CS 1234-1
CS 1223
50 mm for CS 1112
CS 1122
CS 1134
CS 1326
CS 1411
100 mm for CS 1012
CS 1013
150 mm for CS 1421
CS 1312
CS 1322
200 mm for CS 1034
250 mm for CS 1011
CS 1018
CS 1021
Recommended
Not recommended
Not allowed
Safety instructions for installation
