CHAPTER 3 SERVICE
DOLLAR BILL VALIDATOR SERVKE
To service Dollar Bill Validator...
(Use MARS AE2411 -U3 UL recognized currency changer)
IDollar bill validators or other currency acceptors may be installed in games that are manufactured with an
*additional wiring connector.
0 Switch off power to game machine and unplug the AC line cord.
0 Unlock and open coin door. Read label affixed to the inside of door for additional information

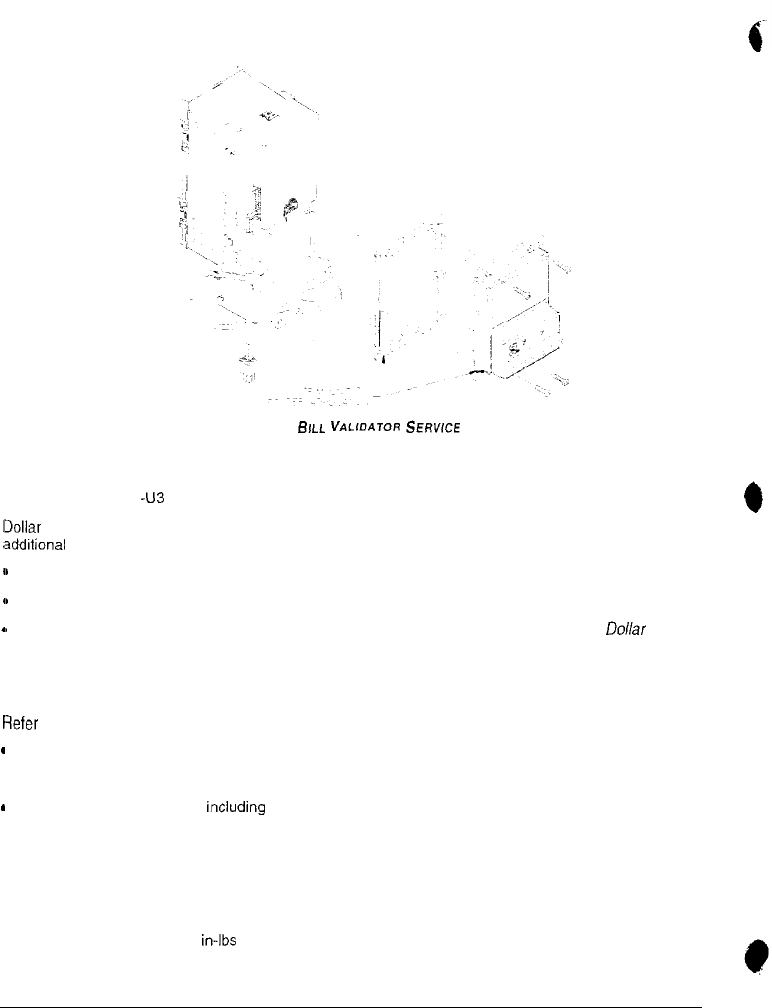

.’ Disassemble validator and remove material to permit it to fit inside coin door as shown in Dollar Bill l/a/i-
d&or Service illustration, then reassemble unit.
To service Shaker Motor Assembly in Seat...
fqefer to Seat Service illustration.
* Switch off power to game machine and unplug AC line cord.
l Remove tamper resistant screws used to fasten seat access panel and pull panel forward
* Label and disconnect wiring, ilicluding ground.
l Remove hex nuts used to fasten shaker motor to seat and remove
l Perform desired repair or equipment replacement.
l Reinstall motor and reattach wiring.
IMPORTANT: Apply removable anaerobic adhesive thread lock (Loctite Blue 242 or equivalent) and
torque each bolt to 20 to 25 in-lbs (177 Nm to 221.25 Nm) if it was loosened.
